The ADS1148IPWR requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1148IPWR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, consider using the device's built-in features such as the programmable gain amplifier (PGA) and the digital filter to optimize performance for your specific application.
The recommended power-up sequence for the ADS1148IPWR is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps to ensure that the device powers up correctly and minimizes the risk of latch-up or other power-related issues.
The ADS1148IPWR's digital output data is available in a 24-bit binary two's complement format. To handle the data, use a microcontroller or FPGA to read the data from the device's SPI interface. The data can then be processed and converted to a more usable format, such as a decimal value, using software or firmware.
Some common pitfalls to avoid when using the ADS1148IPWR include: not following the recommended layout and placement guidelines, not using adequate decoupling capacitors, and not properly configuring the device's registers. Additionally, be careful not to exceed the device's maximum ratings, such as the input voltage range, to avoid damaging the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1148IPWR Overview

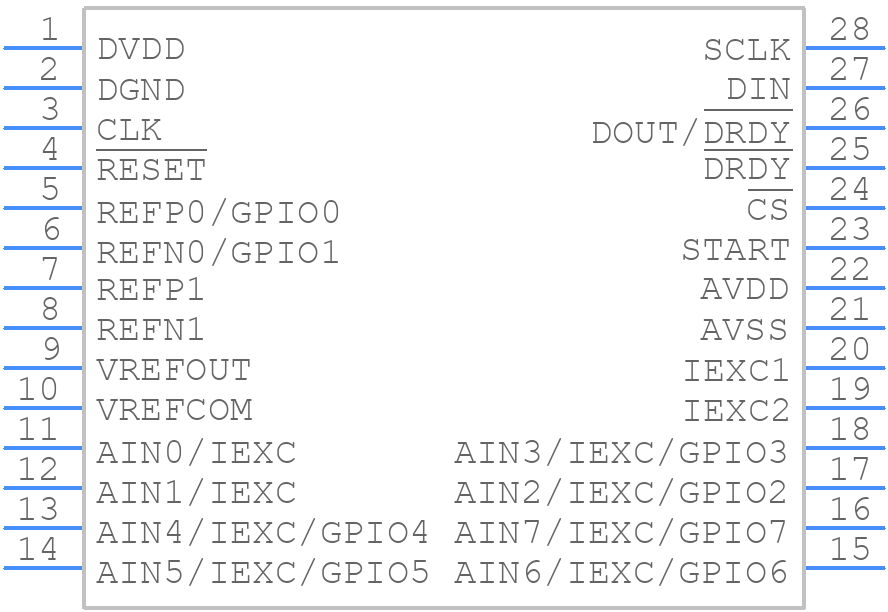

Use the download button to access the ADS1148IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
