The ADS1148IRHBT is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
To optimize the ADS1148IRHBT's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, offset, and sampling rate, as well as configuring the internal reference voltage and clock source. Additionally, the ADC's input range and common-mode voltage should be considered to ensure optimal performance.
The ADS1148IRHBT's performance can be affected by temperature variations. The ADC's offset and gain drift with temperature, which can impact its accuracy. It is essential to consider the operating temperature range and compensate for these effects in the system design. The datasheet provides temperature-related specifications and graphs to help with this process.
To ensure EMC with the ADS1148IRHBT, it is essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering techniques. Additionally, the ADC's digital outputs should be properly terminated, and the system should be designed to minimize radiated emissions.
When using multiple ADS1148IRHBT devices or multiple channels, it is essential to consider the system's overall noise budget, clock synchronization, and data synchronization. The ADCs should be properly synchronized, and the system should be designed to minimize crosstalk and noise coupling between channels.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1148IRHBT Overview

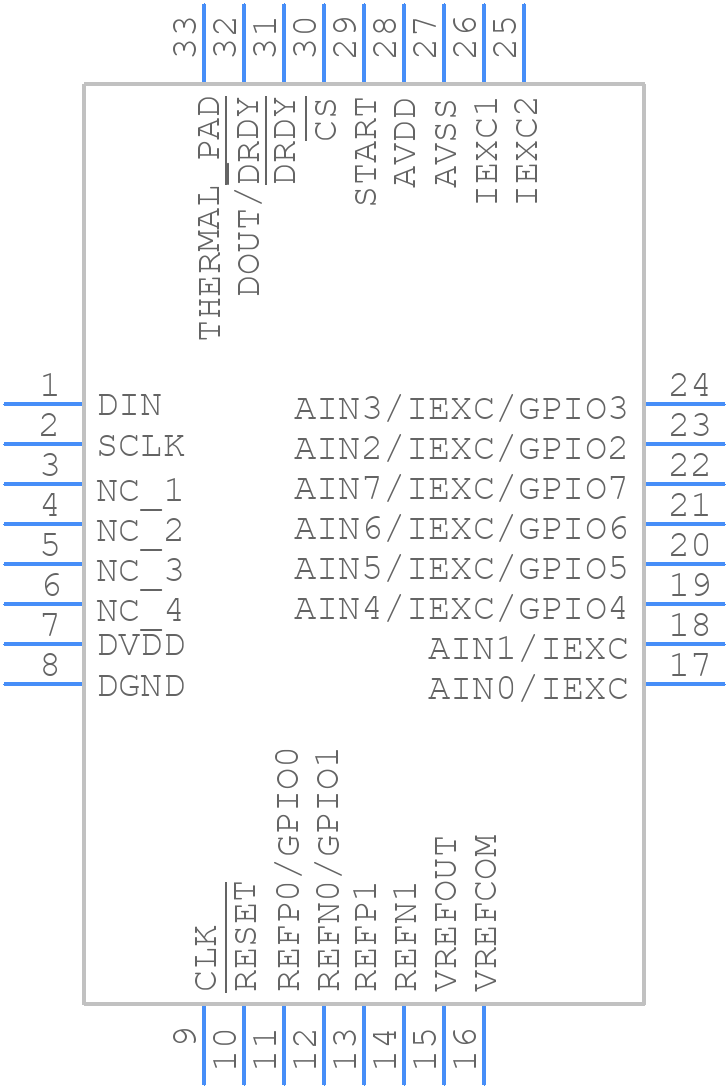

Use the download button to access the ADS1148IRHBT schematic symbol, PCB footprint, and 3D model.
