Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the power supply with a 10uF capacitor and a 100nF capacitor in parallel.
Use the built-in calibration features of the ADS114S06BIRHBR, such as the internal calibration voltage and current sources. Perform a system calibration by applying a known input voltage and adjusting the gain and offset registers to achieve the desired output code. Repeat this process for multiple input voltages to ensure accurate conversion across the entire range.
The recommended clock frequency for the ADS114S06BIRHBR is between 1.5 MHz and 4 MHz. Ensure that the clock signal is clean and stable, with a duty cycle of 50% ± 10%. Also, ensure that the clock signal is synchronized with the conversion process to avoid errors.
Implement error detection and handling mechanisms in your firmware to detect and respond to errors, such as overflow or underflow conditions. Use the ADS114S06BIRHBR's built-in error flags and status registers to detect errors, and implement recovery mechanisms, such as retrying the conversion or resetting the device.
Power up the ADS114S06BIRHBR in the following sequence: VDD, AVDD, and then DVDD. Power down in the reverse sequence. Ensure that the power supplies are stable and within the recommended voltage range before starting conversions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS114S06BIRHBR Overview

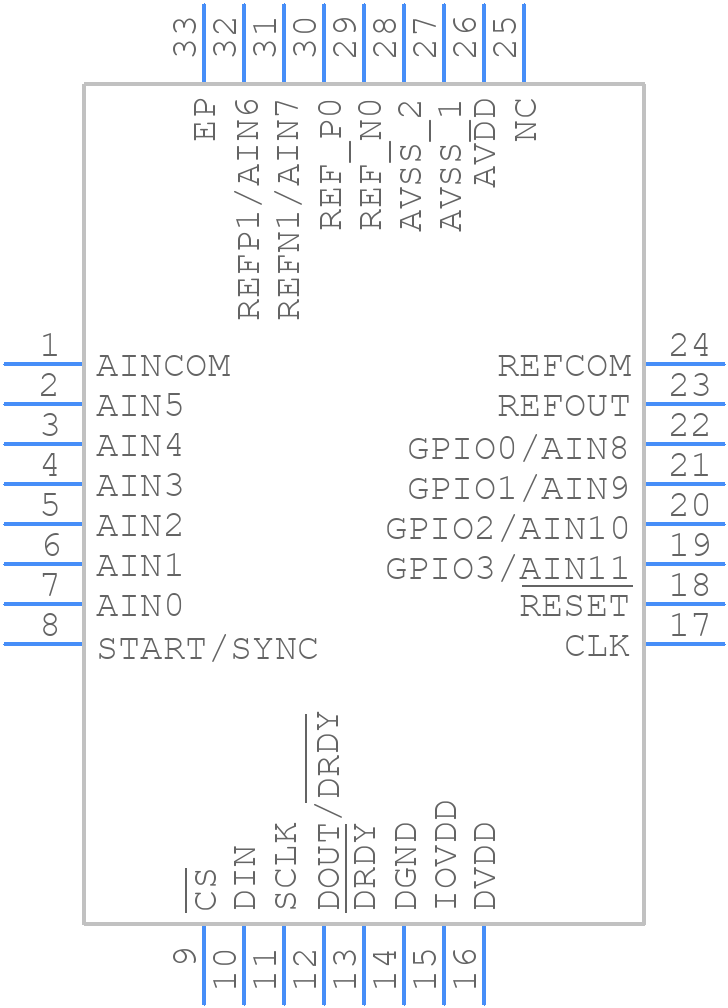

Use the download button to access the ADS114S06BIRHBR schematic symbol, PCB footprint, and 3D model.
