Texas Instruments provides a layout guide in the datasheet, but it's recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the device close to the analog signal sources to minimize noise. Additionally, ensure that the device is placed on a solid ground plane to reduce electromagnetic interference (EMI).
To optimize performance in a noisy environment, use a low-pass filter (LPF) or a band-pass filter (BPF) to filter out unwanted frequencies, use a shielded cable to connect the device to the analog signal sources, and consider using a common-mode choke to reduce electromagnetic interference (EMI). Additionally, ensure that the device is properly grounded and decoupled.
The maximum sampling rate of the ADS114S06IPBS is 2 kSPS, but it can be limited by the system's clock frequency, the analog input bandwidth, and the digital interface speed. To achieve the maximum sampling rate, ensure that the system's clock frequency is at least 4 times the sampling rate, and use a high-speed digital interface such as SPI or I2C.
Calibration is not required for the ADS114S06IPBS, as it has an internal calibration circuit that ensures accurate conversions. However, it's recommended to perform a system-level calibration to account for any external component tolerances and PCB layout variations. This can be done by applying a known input voltage and measuring the output code to determine the gain and offset errors.
The power consumption of the ADS114S06IPBS is typically around 1.5 mA at 2.7 V, but it can be reduced by using the device's power-down mode, reducing the sampling rate, and using a lower supply voltage. Additionally, consider using a low-power microcontroller and optimizing the system's power management to minimize overall power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS114S06IPBS Overview

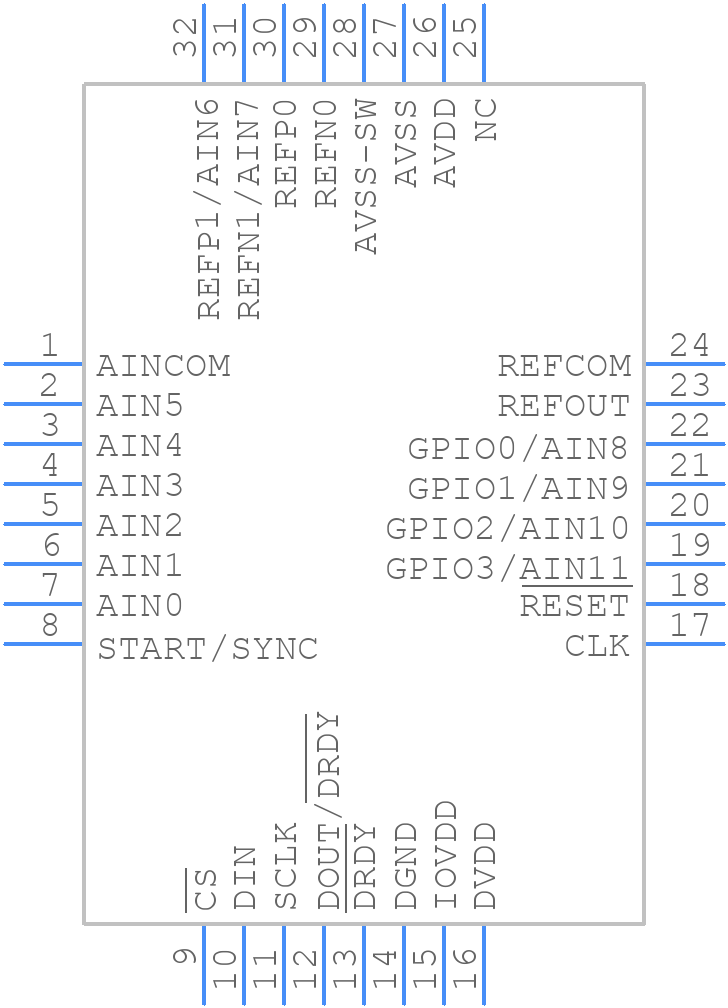

Use the download button to access the ADS114S06IPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
