The ADS114S08BIRHBR requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS114S08BIRHBR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate clock source. Additionally, ensure proper filtering and buffering of the input signal, and consider using the device's built-in calibration features.
The ADS114S08BIRHBR is specified to operate from -40°C to 125°C. However, high temperatures can affect the device's accuracy and noise performance. Ensure proper thermal management, and consider using thermal shielding or heat sinks if operating in high-temperature environments.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering on input and output signals. Additionally, consider using the device's built-in electromagnetic interference (EMI) filters and following TI's recommended layout guidelines.
The ADS114S08BIRHBR requires proper power sequencing to prevent damage or incorrect operation. Ensure that the analog power supply (AVDD) is powered up before the digital power supply (DVDD), and that the device is fully powered up before initiating conversions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS114S08BIRHBR Overview

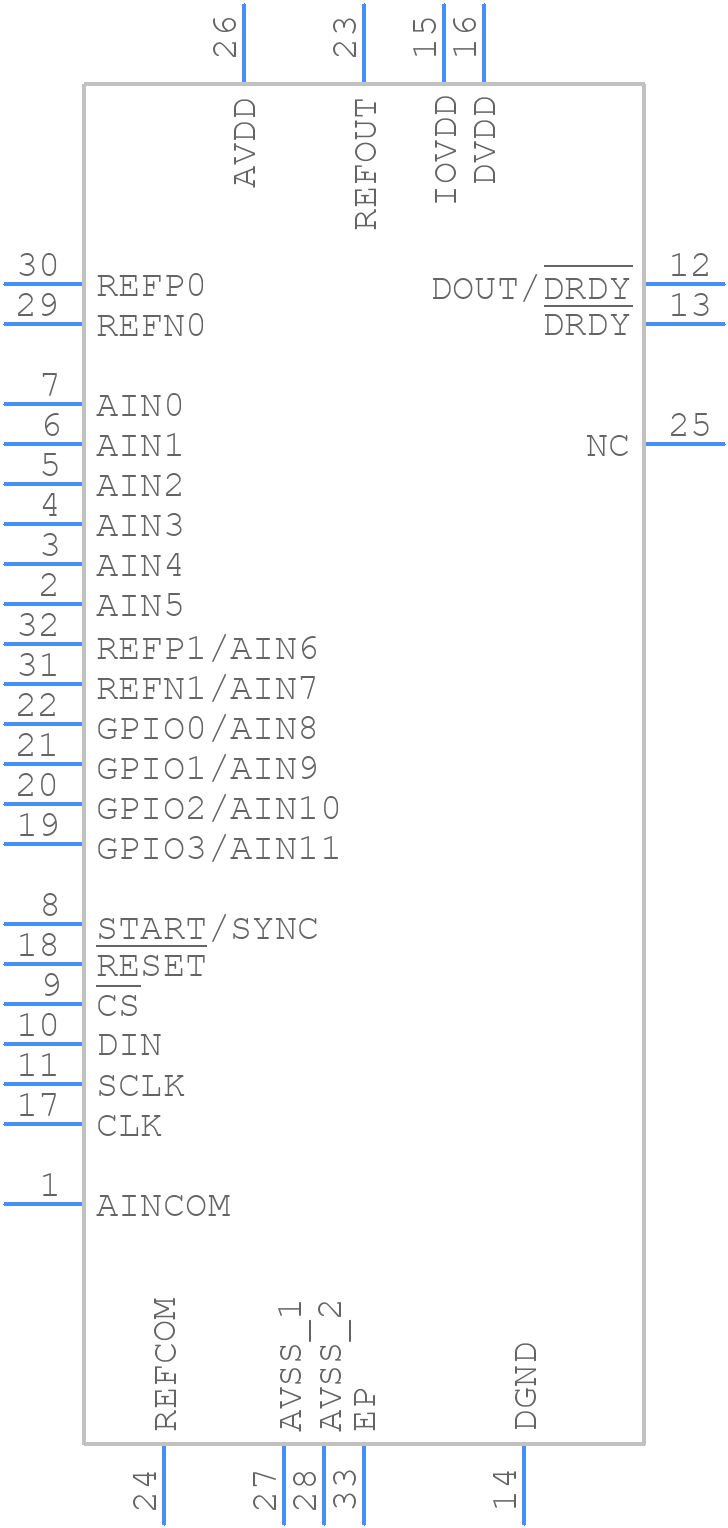

Use the download button to access the ADS114S08BIRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
