The ADS1158 datasheet provides a recommended layout and placement guide, but it's essential to follow good analog design practices, such as separating analog and digital grounds, using a solid ground plane, and placing the ADC close to the analog signal sources. Additionally, ensure that the device is placed in a quiet area of the board, away from high-frequency noise sources.
To optimize the ADS1158's performance, consider the following: choose the correct gain setting for your input signal range, select the appropriate data rate for your application, and use the internal reference voltage or an external reference with low noise and high stability. Additionally, ensure that the input signals are properly filtered and buffered to reduce noise and distortion.
The ADS1158 outputs 16-bit or 24-bit data, depending on the mode. To handle the digital output data, use a microcontroller or FPGA with a SPI interface to read the data from the ADC. Ensure that the digital interface is properly synchronized, and consider using a FIFO or buffer to handle the data stream. Additionally, consider using a CRC or checksum to ensure data integrity.
The ADS1158 has an internal calibration mechanism, but it's essential to perform an external calibration to ensure optimal performance. Use a high-precision voltage source to calibrate the ADC, and consider using a calibration routine that includes offset and gain adjustments. Additionally, consider performing periodic recalibration to maintain optimal performance over time and temperature changes.
The ADS1158 is a high-performance ADC, and thermal considerations are crucial to ensure optimal performance. Ensure that the device is properly heat-sinked, and consider using a thermal pad or heat sink to dissipate heat. Additionally, ensure that the device is operated within the recommended temperature range, and consider using thermal monitoring and shutdown mechanisms to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1158IRTCTG4 Overview

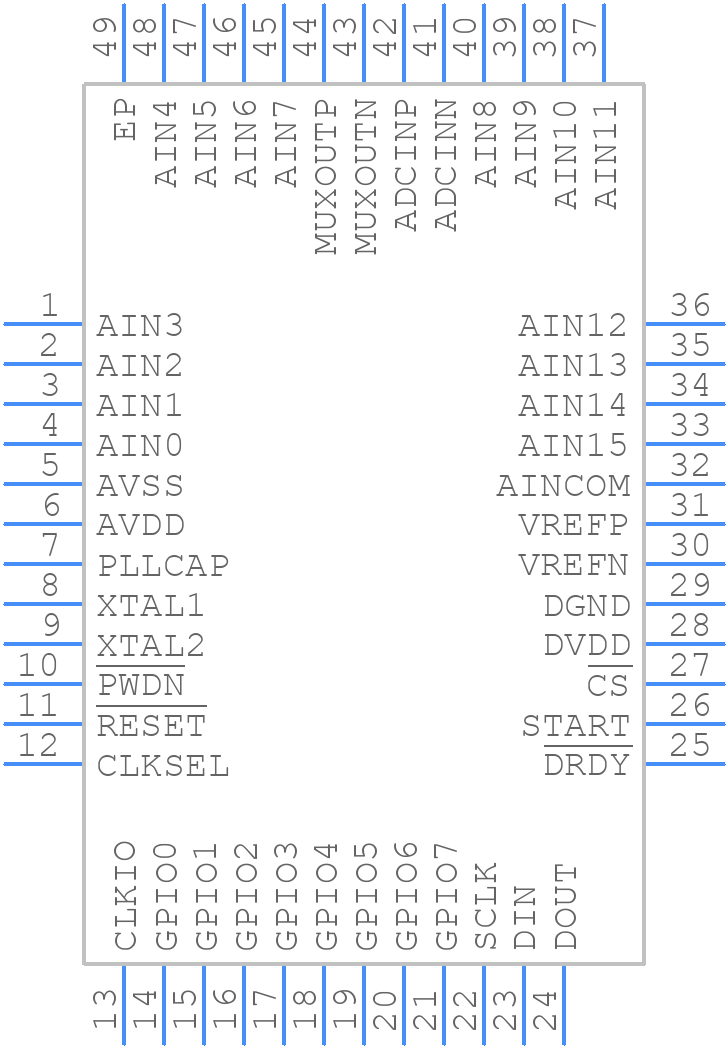

Use the download button to access the ADS1158IRTCTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
