ADS1191IPBSR - Texas Instruments

Description: AFE General Purpose 1ADC 16bit 1.8V/3V 32-Pin TQFP T/R

Download ADS1191IPBSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

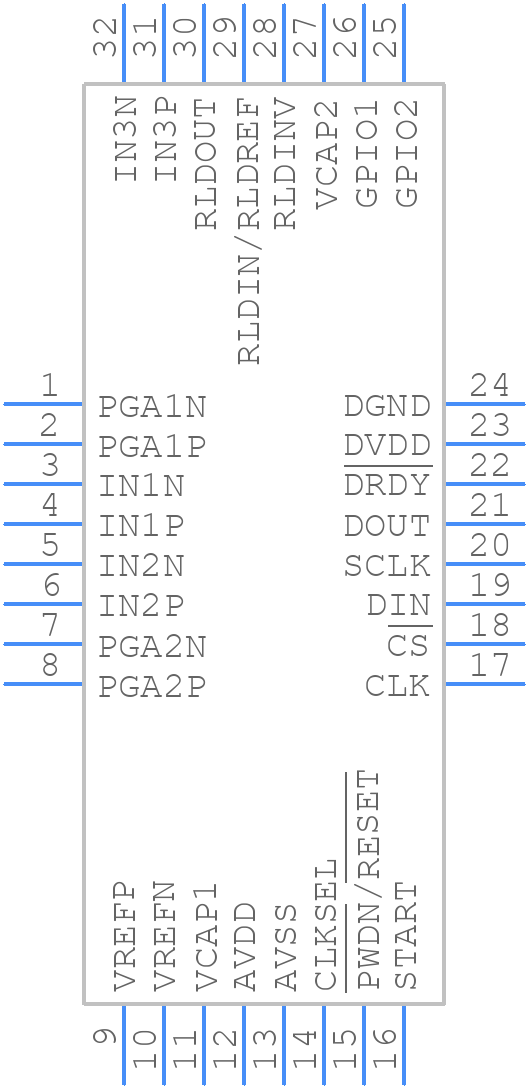

ADS1191IPBSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1191IPBSR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP-32
click to zoom
3D Models
ADS1191IPBSR - Texas Instruments - 3D model - Quad Flat Packages - TQFP-32
click to zoom

ADS1191IPBSR Details

  • Manufacturer Part Number:

    ADS1191IPBSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS1191IPBSR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADS1191IPBSR close to the analog signal sources to minimize noise. Additionally, it's recommended to keep the analog and digital grounds separate and connect them at a single point.
  • To optimize performance in a noisy environment, use a low-pass filter at the input, keep the analog signal paths short, and use shielding or guarding to reduce electromagnetic interference (EMI). Additionally, consider using a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • The maximum input voltage range for the ADS1191IPBSR is ±6.144V, but it's recommended to keep the input voltage within ±5V to ensure optimal performance and prevent damage to the device.
  • Calibration involves adjusting the offset and gain of the ADC to match the specific application requirements. Texas Instruments provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers accordingly.
  • The power consumption of the ADS1191IPBSR is typically around 13.5mW at 2.5V and 10ksps. To reduce power consumption, consider using the device's power-down mode, reducing the sampling rate, or using a lower supply voltage.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADS1191IPBSR Overview

Use the download button to access the ADS1191IPBSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
