The ADS1191IRSMR requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping the analog and digital traces separate. Additionally, the device should be placed away from high-frequency sources and noise-generating components.
Optimizing gain and offset calibration for the ADS1191IRSMR involves adjusting the internal gain and offset registers to achieve the desired signal-to-noise ratio and common-mode rejection ratio. TI recommends using the device's built-in calibration modes and following the calibration procedure outlined in the datasheet.
The recommended power-up sequence for the ADS1191IRSMR involves applying the analog power supply (AVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent latch-up and ensures proper device operation.
To handle EMI and RFI with the ADS1191IRSMR, TI recommends using proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the shield to a low-impedance ground, and using filters to attenuate high-frequency noise.
The maximum data rate that can be achieved with the ADS1191IRSMR depends on the specific configuration and operating mode. However, the device can achieve data rates of up to 4 kSPS in high-speed mode and up to 1 kSPS in low-power mode.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1191IRSMR Overview

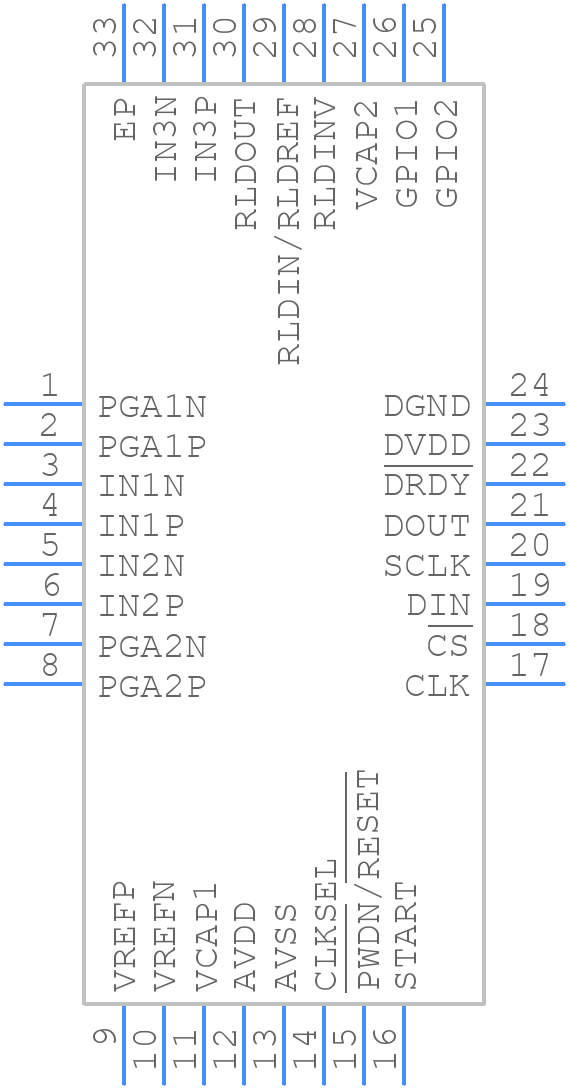

Use the download button to access the ADS1191IRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
