ADS1192IRSMR - Texas Instruments

Description: AFE General Purpose 2ADC 24bit 1.8V/3V 32-Pin VQFN EP T/R

Download ADS1192IRSMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

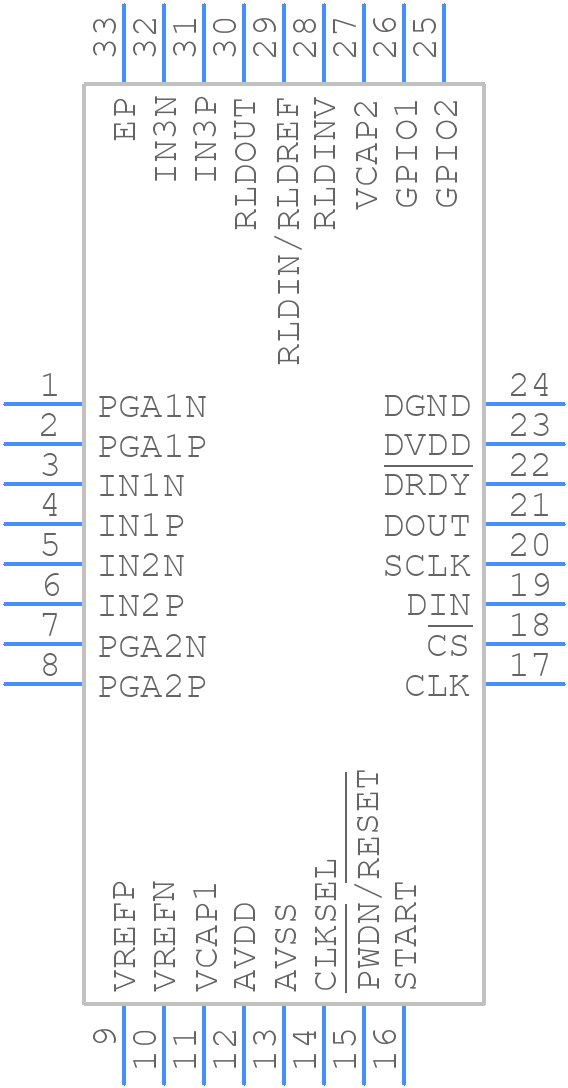

Symbol
ADS1192IRSMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1192IRSMR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSM0032B 2021
click to zoom
3D Models
ADS1192IRSMR - Texas Instruments - 3D model - Quad Flat No-Lead - RSM0032B 2021
click to zoom

ADS1192IRSMR Details

  • Manufacturer Part Number:

    ADS1192IRSMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO REQUIRES 1.8 V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS1192IRSMR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADS1192IRSMR is to keep the analog and digital sections separate, with a clear separation between the analog and digital grounds. The analog section should be placed near the input signals, and the digital section should be placed near the microcontroller. The power supply lines should be routed away from the analog signals, and the digital signals should be routed away from the analog signals.
  • To optimize the performance of the ADS1192IRSMR in a noisy environment, use a differential input configuration, use a high-quality analog-to-digital converter (ADC) driver, and use a low-noise power supply. Additionally, use a shielded cable for the input signals, and use a common-mode choke to reduce electromagnetic interference (EMI). Also, consider using a noise filter or a shielding box to reduce the noise.
  • The maximum sampling rate of the ADS1192IRSMR is 8 kSPS (kilosamples per second) for single-channel mode and 4 kSPS for multi-channel mode.
  • The ADS1192IRSMR does not require calibration. It has an internal calibration circuit that calibrates the device during power-up. However, if you need to calibrate the device for a specific application, you can use the calibration registers to adjust the gain and offset of the device.
  • The power consumption of the ADS1192IRSMR is approximately 1.5 mW at 1.8 V and 100 kSPS, and 2.5 mW at 3.3 V and 100 kSPS.
