The ADS1204IRHBR requires careful layout and routing to minimize noise and ensure accurate conversions. TI recommends using a 4-layer PCB with a solid ground plane, and keeping analog and digital signals separate. Additionally, use short, direct traces for the analog inputs and outputs, and avoid running digital signals near the analog inputs.
To optimize the ADS1204IRHBR's performance, consider the following: choose the correct gain setting for your input signal range, use the correct sampling rate for your application, and ensure proper filtering and signal conditioning. Additionally, consider using the ADC's built-in calibration features and adjusting the clock frequency to optimize performance.
The ADS1204IRHBR is rated for operation up to 125°C, but high temperatures can affect its performance and accuracy. At high temperatures, the ADC's offset and gain errors may increase, and its conversion speed may decrease. Ensure proper thermal management and consider using thermal shielding or heat sinks to maintain a stable temperature.
To ensure EMC with the ADS1204IRHBR, follow proper PCB design and layout guidelines, use shielding and filtering as needed, and ensure that the ADC is properly grounded. Additionally, consider using electromagnetic interference (EMI) filters and shielding on the ADC's inputs and outputs.
The ADS1204IRHBR requires proper power sequencing to ensure reliable operation. Ensure that the analog power supply (AVDD) is powered up before the digital power supply (DVDD), and that the clock signal is stable before starting conversions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1204IRHBR Overview

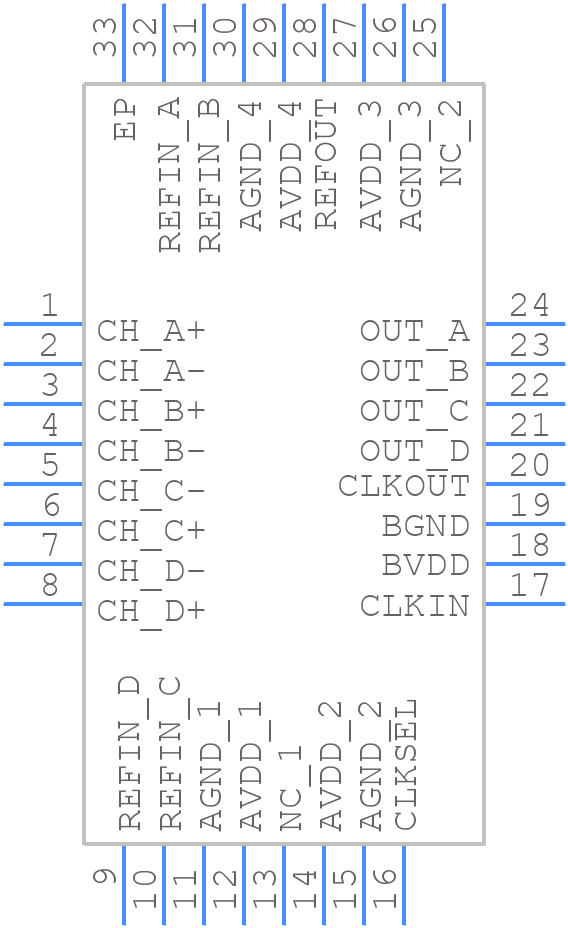

Use the download button to access the ADS1204IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
