The ADS1205IRGET requires careful layout and routing to minimize noise and ensure accurate conversions. TI recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device.
To optimize the ADS1205IRGET's performance, consider the input signal frequency, amplitude, and impedance. Adjust the gain, offset, and filter settings accordingly. Also, ensure the reference voltage is stable and noise-free. Consult the datasheet and application notes for specific guidance.
The ADS1205IRGET has a POR and BOR circuitry to ensure reliable startup. To handle these features, ensure a clean power-up sequence, and consider adding a voltage supervisor or reset IC to monitor the power supply. This helps prevent incorrect device operation during power-up or brown-out conditions.
To minimize EMI and RFI, use a shielded enclosure, and ensure the PCB is designed with EMI reduction in mind. Use a common-mode choke or ferrite bead on the analog input lines, and consider adding EMI filters or shielding to the device and surrounding components.
The ADS1205IRGET has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a heat sink or thermal pad, and avoid blocking airflow around the device. Consult the datasheet for thermal resistance and power dissipation information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1205IRGET Overview

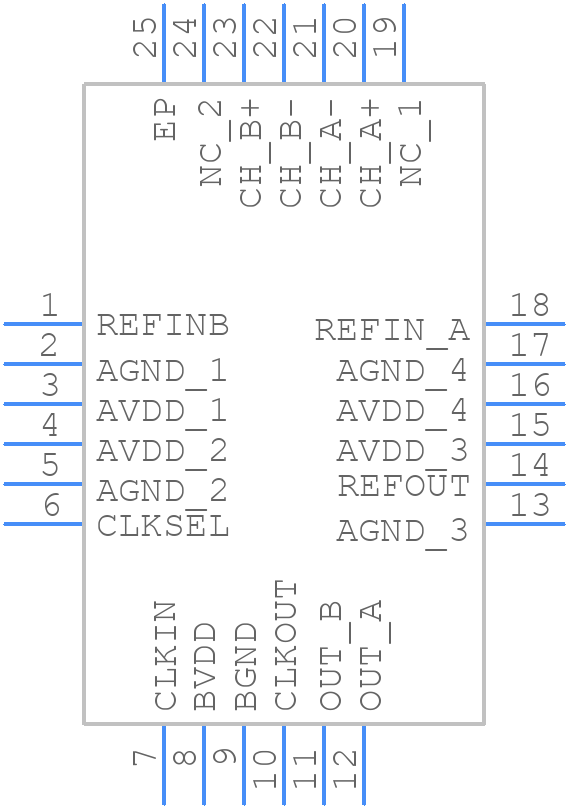

Use the download button to access the ADS1205IRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
