Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADS1212UG4 close to the analog signal sources to minimize noise. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog signals.
To optimize performance in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the power supply is clean and well-regulated, and consider using a separate analog power supply.
The maximum sampling rate of the ADS1212UG4 is 250 samples per second (SPS) for a single channel, and 125 SPS for multiple channels. However, the actual sampling rate may be limited by the system's clock frequency, the conversion time, and the settling time of the analog input.
The ADS1212UG4 has an internal calibration mechanism that can be initiated through the CAL pin. The calibration process involves shorting the analog input to the internal reference voltage, and then adjusting the offset and gain registers to achieve the desired accuracy.
The ADS1212UG4's performance is affected by temperature, with the offset and gain drift increasing with temperature. The device is specified to operate from -40°C to 125°C, and the user should consider temperature compensation and calibration to achieve optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1212UG4 Overview

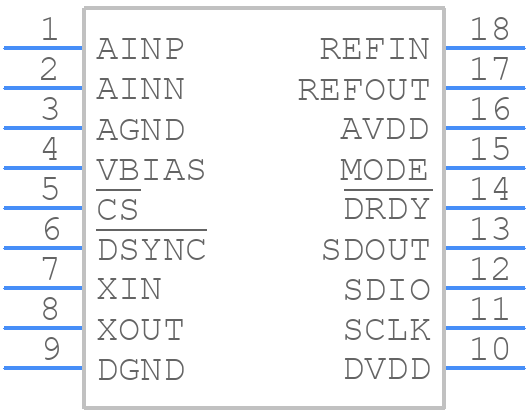

Use the download button to access the ADS1212UG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
