ADS1213U/1K - Texas Instruments

Description: 4-Channel Single ADC Delta-Sigma 6.25ksps 22-bit Serial 24-Pin SOIC T/R

Download ADS1213U/1K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

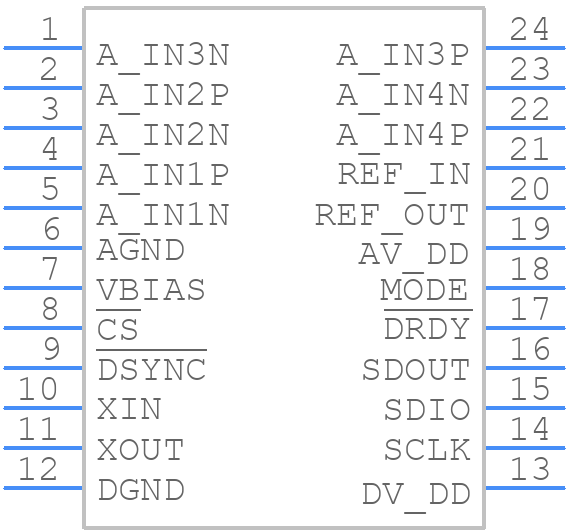

ADS1213U/1K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1213U/1K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW(R-PDSO-G24)_2021
click to zoom
3D Models
ADS1213U/1K - Texas Instruments - 3D model - Small Outline Packages - DW(R-PDSO-G24)_2021
click to zoom

ADS1213U/1K Details

  • Manufacturer Part Number:

    ADS1213U/1K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    4.75 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    4

  • Number of Bits:

    22

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.00625 MHz

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADS1213U/1K Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADS1213U/1K close to the analog signal sources. Additionally, it's recommended to use a separate analog ground plane and to keep digital signals away from the analog signals.
  • The ADS1213U/1K has an internal calibration mechanism, but it's recommended to perform an external calibration using a known voltage reference to achieve the highest accuracy. The calibration process involves applying a known voltage to the input and adjusting the offset and gain registers accordingly.
  • The maximum sampling rate of the ADS1213U/1K is 250 samples per second (SPS) for a single channel, and 125 SPS for multiple channels. However, the actual sampling rate may be limited by the system's clock frequency and the communication interface used.
  • The ADS1213U/1K outputs 24-bit digital data in a twos-complement format. The output data can be handled using a microcontroller or a digital signal processor, and it's recommended to use a FIFO buffer to handle the data stream. The output data format can be configured using the device's registers.
  • The power consumption of the ADS1213U/1K is typically around 1.5mA at 3.3V supply voltage. To reduce power consumption, it's recommended to use the device's power-down mode, reduce the sampling rate, and use a lower supply voltage if possible.
