The ADS1218Y/250 requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1218Y/250's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise, and consider using a dedicated analog power supply.
The ADS1218Y/250 requires a one-time calibration after power-up. The calibration procedure involves writing specific register values to the device, which can be found in the datasheet. It's essential to follow the recommended calibration procedure to ensure accurate conversions.
The ADS1218Y/250 provides error flags and interrupt signals to indicate errors or exceptions during data conversion. Engineers should implement error handling routines to detect and respond to these flags and interrupts, ensuring reliable data acquisition and system operation.
The ADS1218Y/250 has a maximum junction temperature of 150°C. Engineers should ensure proper thermal design, including heat sinking and airflow, to maintain a safe operating temperature and prevent overheating.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS1218Y/250 Overview

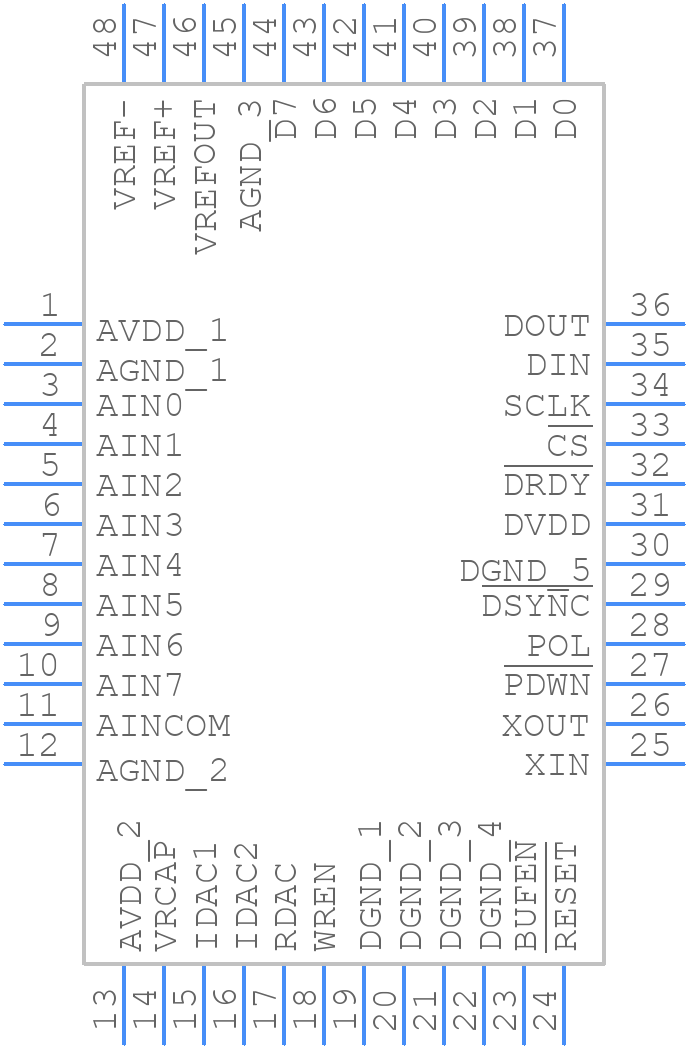

Use the download button to access the ADS1218Y/250 schematic symbol, PCB footprint, and 3D model.
