Description:Analog to Digital Converters - ADC 24-bit, 1kSPS, 4-ch general-purpose delta-sigma ADC with I2C interface and external Vref inputs 16-TSSOP -40 to 125
The ADS1219IPW requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1219IPW's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise, and consider using a dedicated analog power supply.
The ADS1219IPW requires a one-time calibration after power-up. The calibration process involves writing specific registers to configure the device. TI recommends following the calibration procedure outlined in the datasheet, which includes setting the gain, offset, and full-scale calibration coefficients.
The ADS1219IPW provides error flags and interrupt signals to indicate errors during data conversion. Engineers should implement error handling routines to detect and respond to errors, such as data overflow, underflow, or CRC errors. This may involve resetting the device, retrying the conversion, or alerting the system to the error.
The ADS1219IPW has a maximum junction temperature of 150°C. Engineers should ensure proper thermal design, including heat sinking and airflow, to prevent overheating. Additionally, the device's power consumption should be considered to prevent thermal issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1219IPW Overview

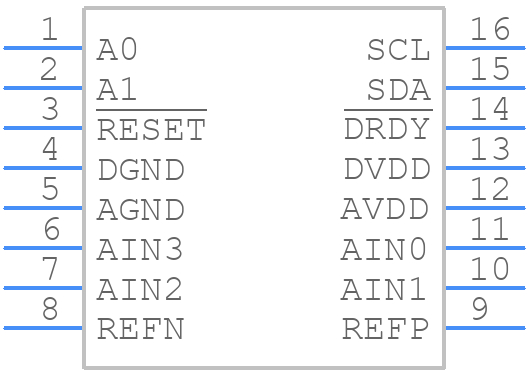

Use the download button to access the ADS1219IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
