The ADS1220IRVAR requires careful PCB layout and placement to ensure optimal performance. TI recommends placing the device near the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1220IRVAR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate clock source. Additionally, ensure proper filtering and shielding of the analog input signals, and consider using the device's built-in calibration features.
The ADS1220IRVAR's digital output data should be handled carefully to avoid data corruption. Use a first-in-first-out (FIFO) buffer or a dedicated DMA channel to handle the data stream. Ensure the receiving system can handle the data rate and format, and consider using error detection and correction mechanisms.
To ensure EMC with the ADS1220IRVAR, follow proper PCB design and layout practices, use shielding and filtering, and ensure the device is properly grounded. Additionally, consider using electromagnetic interference (EMI) filters and shielding on the analog input signals.
The ADS1220IRVAR has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink or thermal pad, and avoid exposing the device to extreme temperatures. Consider using thermal interface materials and following proper thermal design practices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1220IRVAR Overview

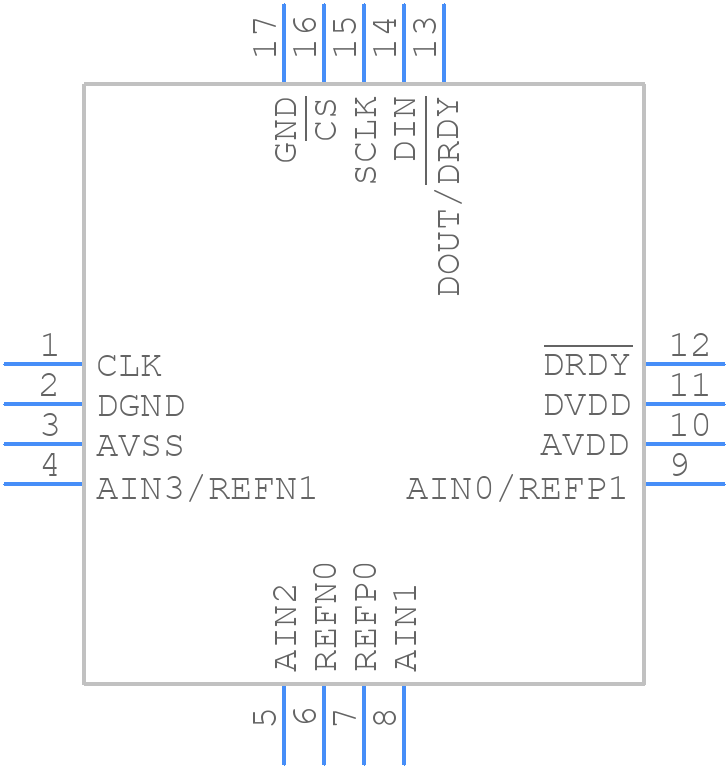

Use the download button to access the ADS1220IRVAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
