The ADS1222IPWT is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources.
To optimize the ADS1222IPWT's performance, consider the following: choose the correct gain setting, select the appropriate data rate, and adjust the internal voltage reference. Additionally, ensure that the input signals are properly filtered and buffered, and that the ADC is properly calibrated.
The ADS1222IPWT's performance can be affected by temperature. The device's offset and gain drift with temperature, and the noise floor increases at higher temperatures. It is recommended to operate the device within the specified temperature range and to consider temperature calibration and compensation techniques if necessary.
The ADS1222IPWT outputs 24-bit data, which can be processed using a microcontroller or FPGA. It is recommended to use a dedicated SPI or I2C interface to read the data, and to consider using a FIFO or buffer to handle the data stream.
The ADS1222IPWT requires a single 3.3V or 5V power supply, and it is recommended to use a low-noise, low-dropout regulator to power the device. Additionally, it is recommended to decouple the power supply lines with capacitors to reduce noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1222IPWT Overview

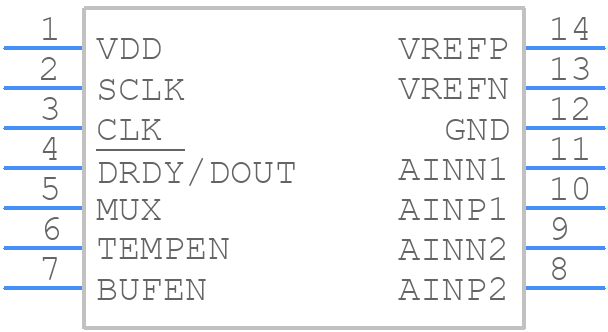

Use the download button to access the ADS1222IPWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
