The ADS1224IPWR requires careful PCB layout and placement to ensure optimal performance. TI recommends placing the device near the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. A 4-layer PCB with a dedicated analog ground plane is recommended.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate filter settings. Additionally, ensure proper PCB layout, decoupling, and noise reduction techniques are employed. TI provides application notes and evaluation modules to help with optimization.
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). This ensures the internal voltage regulators are properly initialized. A power-up sequence diagram is available in the datasheet.
The ADS1224IPWR has an internal oscillator that can be used as the clock source. However, an external clock source can also be used. Ensure the clock frequency is within the recommended range (32 kHz to 4.096 MHz) and that the clock signal is clean and stable.
To minimize EMI and RFI, use a shielded enclosure, keep analog and digital traces separate, and use a common-mode filter on the analog inputs. Additionally, ensure proper grounding, decoupling, and shielding of the PCB. TI provides guidelines for EMI and RFI mitigation in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1224IPWR Overview

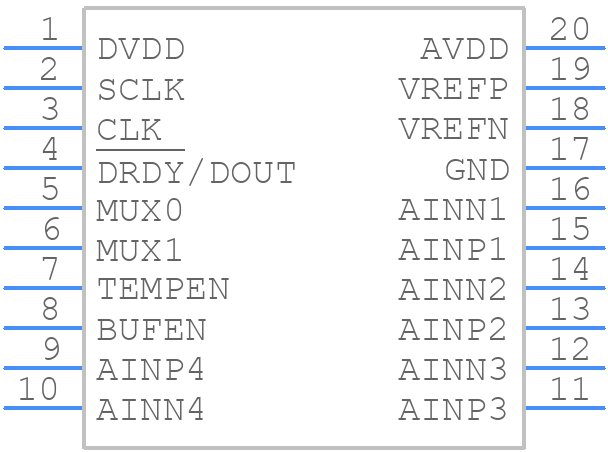

Use the download button to access the ADS1224IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
