The ADS1226IRGVT is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
To optimize the ADS1226IRGVT's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, data rate, and filter settings. Additionally, the ADC's internal calibration can be used to improve its performance. It is also recommended to consult the device's datasheet and application notes for specific guidance.
The ADS1226IRGVT's performance can be affected by temperature. The device's offset and gain drift with temperature, which can impact its accuracy. It is essential to consider the operating temperature range and the device's thermal characteristics when designing the system. Additionally, the device's internal temperature sensor can be used to monitor and compensate for temperature-related effects.
To ensure EMC with the ADS1226IRGVT, it is essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering techniques. Additionally, the device's digital outputs should be properly terminated, and the system should be designed to minimize radiated emissions.
The ADS1226IRGVT requires a clean and stable power supply to ensure optimal performance. It is recommended to use a low-noise, low-dropout regulator (LDO) to power the device, and to decouple the power supply lines with capacitors. Additionally, the device's power-on reset (POR) circuitry should be considered when designing the power-up sequence.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1226IRGVT Overview

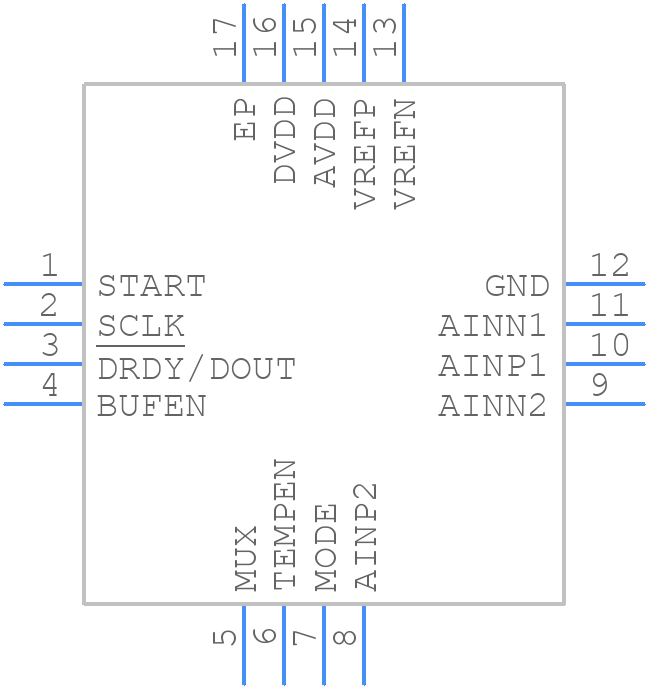

Use the download button to access the ADS1226IRGVT schematic symbol, PCB footprint, and 3D model.
