The ADS122C04IRTER requires careful PCB layout and routing to minimize noise and ensure accurate conversions. TI recommends following the layout guidelines in the datasheet, including keeping analog and digital traces separate, using a solid ground plane, and minimizing trace lengths.
To optimize the ADS122C04IRTER's performance, consider factors such as input signal amplitude, frequency, and impedance. Adjust the ADC's gain, offset, and sampling rate to match your application's requirements. Additionally, consider using the ADC's built-in features, such as the programmable gain amplifier and digital filter, to improve performance.
The ADS122C04IRTER provides several error detection mechanisms, including CRC error detection and overflow detection. Implement error handling routines to detect and respond to these errors, and consider using the ADC's built-in diagnostic features to identify and correct issues.
To ensure EMC with the ADS122C04IRTER, follow proper PCB design and layout practices, such as using shielding, filtering, and grounding techniques. Additionally, consider using the ADC's built-in features, such as the programmable analog input filter, to reduce electromagnetic interference (EMI).
The ADS122C04IRTER requires a specific power-up and power-down sequence to ensure proper operation. Follow the recommended sequence outlined in the datasheet, including powering up the analog supply (AVDD) before the digital supply (DVDD), and powering down the digital supply before the analog supply.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS122C04IRTER Overview

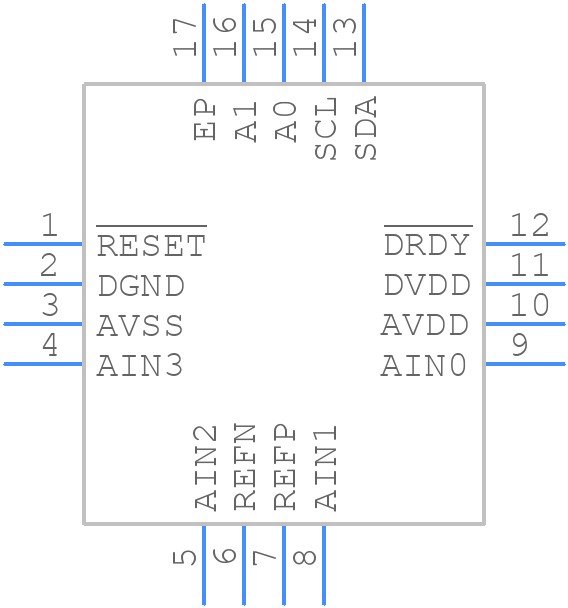

Use the download button to access the ADS122C04IRTER schematic symbol, PCB footprint, and 3D model.
