Texas Instruments provides a recommended layout and placement guide in the ADS122U04IPW datasheet, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To handle the high impedance of the ADS122U04IPW's analog inputs, it is recommended to use a buffer amplifier or an op-amp with a high input impedance to drive the input signal. Additionally, the input signal should be properly filtered and shielded to minimize noise and interference.
The maximum sampling rate for the ADS122U04IPW is 2000 samples per second (SPS) for a single channel, and 1000 SPS for multiple channels. However, the actual sampling rate may be limited by the system's clock frequency, data conversion time, and other factors.
The ADS122U04IPW has an internal calibration mechanism that can be triggered through the CAL pin. The device can be calibrated in-system or during manufacturing. Texas Instruments also provides a calibration guide and software tools to assist with the calibration process.
The power consumption of the ADS122U04IPW depends on the operating mode, sampling rate, and other factors. In normal operation, the device consumes around 1.5 mA of current from the AVDD supply and 0.5 mA from the DVDD supply. In power-down mode, the current consumption is reduced to around 10 μA.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS122U04IPW Overview

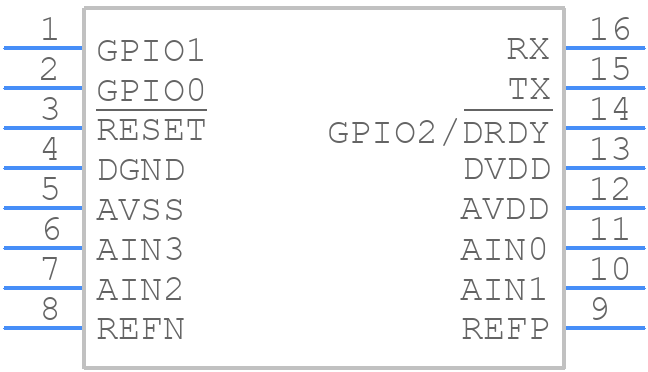

Use the download button to access the ADS122U04IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
