Texas Instruments provides a layout guide in the ADS122U04 datasheet, but it's also recommended to follow the general guidelines for high-precision analog-to-digital converters. This includes keeping analog and digital signals separate, using a solid ground plane, and minimizing noise coupling.
To optimize performance in noisy environments, use a low-pass filter on the input signals, ensure a clean power supply, and use a shielded enclosure. Additionally, consider using the device's built-in noise-reduction features, such as the 50/60 Hz rejection filter and the PGA gain settings.
The maximum sampling rate of the ADS122U04 is 2000 samples per second (SPS) when using the internal clock. However, this rate can be increased to 4000 SPS when using an external clock. Note that the sampling rate may be limited by the system's overall noise performance and the desired signal-to-noise ratio.
No, the ADS122U04 is designed to operate from a 2.7V to 3.6V power supply. Operating the device outside of this range may affect its performance and reliability. If a 5V power supply is required, consider using a voltage regulator to step down the voltage to the recommended range.
The ADS122U04 has a built-in calibration feature that can be initiated through the device's control registers. The calibration process involves adjusting the device's internal offset and gain to ensure accurate conversions. Refer to the datasheet for the specific calibration procedure and recommended calibration intervals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS122U04IRTET Overview

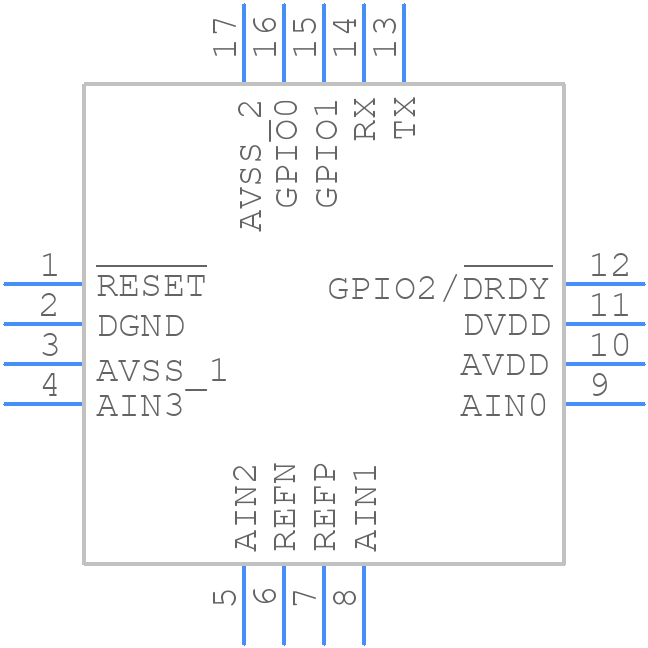

Use the download button to access the ADS122U04IRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
