ADS1232IPWR - Texas Instruments

Description: 24-Bit, 80SPS, 2-Ch (Differential), Pin-Programmable Delta-Sigma ADC for Bridge Sensors

Download ADS1232IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

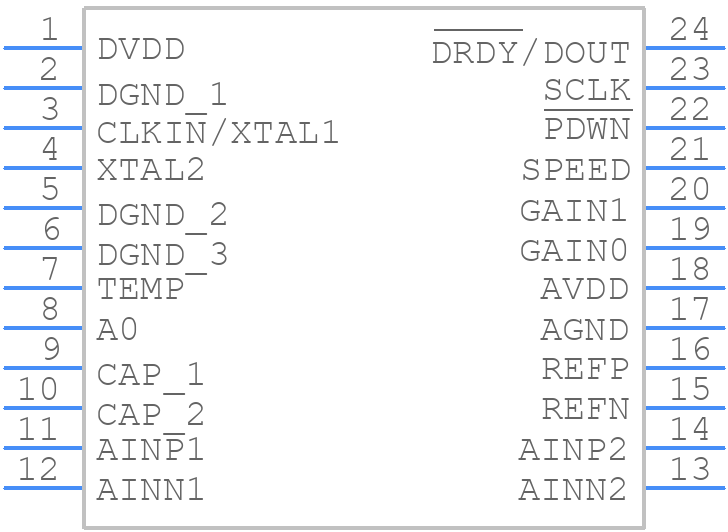

Symbol
ADS1232IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1232IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - ADS1232IPWR-1
click to zoom
3D Models
ADS1232IPWR - Texas Instruments - 3D model - Small Outline Packages - ADS1232IPWR-1
click to zoom

ADS1232IPWR Details

  • Manufacturer Part Number:

    ADS1232IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -0.1 V

  • Conversion Time-Max:

    12.5 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.00008 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS1232IPWR Frequently Asked Questions (FAQs)

  • The ADS1232IPWR requires careful layout and placement to ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping the analog and digital traces separate. Additionally, the device should be placed in a quiet area of the board, away from high-frequency noise sources.
  • The ADS1232IPWR has a built-in calibration mechanism, but it may require additional calibration for specific applications. Engineers can use the device's internal calibration registers to adjust the gain and offset. TI provides a calibration guide and software tools to help with this process.
  • The ADS1232IPWR requires a specific power-up sequence to ensure proper operation. TI recommends powering up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This sequence helps prevent latch-up and ensures proper device operation.
  • The ADS1232IPWR has an internal clock that can be synchronized with an external clock source. Engineers can use the device's clock synchronization pins to synchronize the internal clock with an external clock signal. TI recommends using a clock signal with a frequency of 2.4576 MHz or 4.9152 MHz for optimal performance.
  • The ADS1232IPWR is a high-performance device that can generate heat during operation. Engineers should ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or heat sinks to dissipate heat. Operating the device within the recommended temperature range (–40°C to 85°C) is also crucial.
