The ADS1240E/1K is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
The optimal clock frequency for the ADS1240E/1K depends on the specific application and the desired conversion rate. A higher clock frequency can provide faster conversion rates, but may also increase noise and power consumption. A good starting point is to use the recommended clock frequency range of 1.5 MHz to 4 MHz, and then adjust based on the specific application requirements.
The ADS1240E/1K has a differential input stage, and the recommended input signal range is ±VREF (typically ±2.5V). The input impedance is typically 1 kΩ, and it is recommended to use a source impedance of ≤ 1 kΩ to ensure optimal performance.
The ADS1240E/1K outputs 24-bit data in a serial format. To ensure accurate data transfer, it is recommended to use a dedicated SPI interface, ensure proper synchronization with the ADC's clock, and use a suitable data transfer protocol (e.g., SPI mode 0 or 1). Additionally, it is recommended to use a FIFO or buffer to handle the data transfer and prevent data loss.
The ADS1240E/1K requires a single 5V power supply, and it is recommended to use a low-noise, low-dropout regulator (LDO) to power the ADC. To ensure power supply noise rejection, it is recommended to use a pi-filter or a ferrite bead in the power supply line, and to decouple the power supply lines with capacitors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1240E/1K Overview

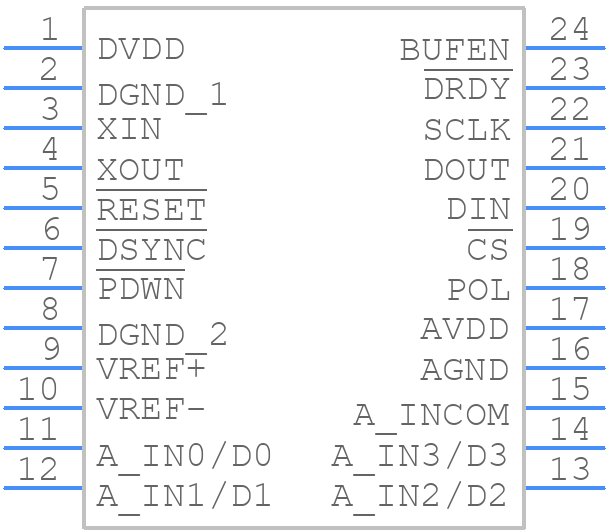

Use the download button to access the ADS1240E/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
