The ADS1241E requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1241E's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and signal conditioning, and consider using the device's built-in calibration features.
The ADS1241E's performance can be affected by temperature. The device's offset and gain drift with temperature, which can impact accuracy. However, the device's internal calibration features can help mitigate these effects. It's essential to consider temperature range and potential thermal gradients in the system design.
To minimize EMI and RFI effects, use proper shielding, grounding, and filtering. Ensure that the device's analog and digital signals are properly separated, and use twisted-pair or shielded cables for analog signal transmission. Additionally, consider using the device's built-in digital filters to reduce noise.
To ensure reliable operation, power the ADS1241E with a clean, regulated power supply. Use a low-dropout regulator (LDO) or a switching regulator with a low noise output. Decouple the power pins with high-quality capacitors, and ensure that the power supply can handle the device's peak current requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1241E Overview

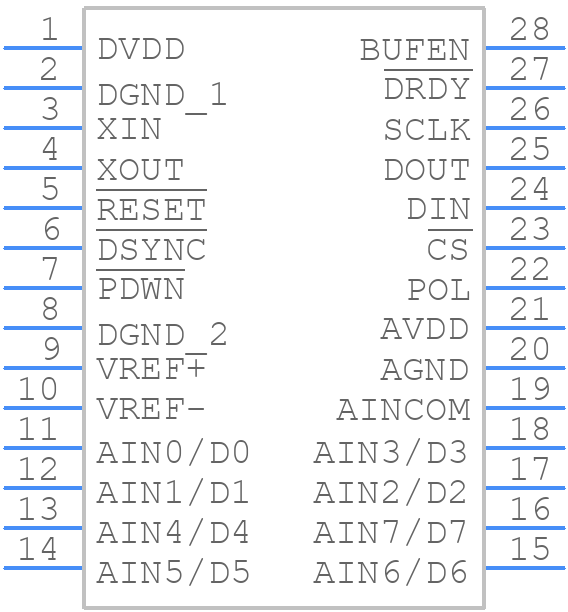

Use the download button to access the ADS1241E schematic symbol, PCB footprint, and 3D model.
