The ADS1242IPWR requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1242IPWR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise, and consider using the device's built-in calibration features.
The ADS1242IPWR's digital output data should be handled carefully to avoid data corruption. Use a first-in-first-out (FIFO) buffer to handle data, and consider using a dedicated DMA channel to transfer data to the microcontroller or processor. Additionally, ensure proper synchronization and data validation to prevent errors.
Common issues with the ADS1242IPWR include noise, offset errors, and conversion errors. To troubleshoot, check the device's power supply, analog input signals, and digital output data. Verify proper device configuration, and check for noise sources and electromagnetic interference (EMI). Consult the datasheet and application notes for specific troubleshooting guidelines.
The ADS1242IPWR has a maximum junction temperature of 150°C. Ensure proper thermal design, including a heat sink if necessary, to prevent overheating. Consider the device's power dissipation, ambient temperature, and airflow when designing the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1242IPWR Overview

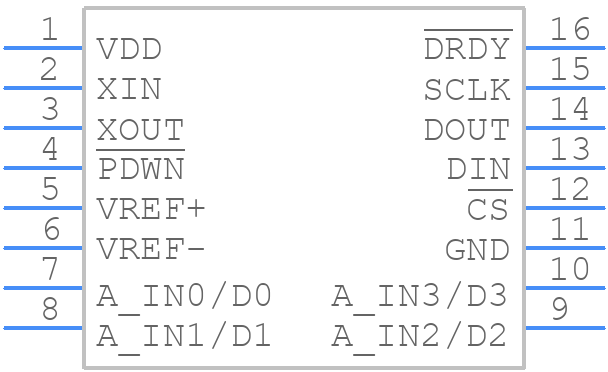

Use the download button to access the ADS1242IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
