The ADS1243IPWR requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1243IPWR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate input range. Additionally, ensure proper filtering and shielding to minimize noise, and consider using the device's built-in calibration features.
The ADS1243IPWR's digital output data should be handled carefully to avoid data corruption. Use a first-in-first-out (FIFO) buffer to handle data, and consider using a dedicated microcontroller or DSP to process the data. Additionally, ensure proper synchronization and data formatting to match the receiving device's requirements.
To ensure EMC with the ADS1243IPWR, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding. Additionally, consider using electromagnetic interference (EMI) filters, and ensure that the device is properly grounded and bonded to the chassis.
The ADS1243IPWR has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and keeping the device away from heat sources. Monitor the device's temperature and adjust the system design accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1243IPWR Overview

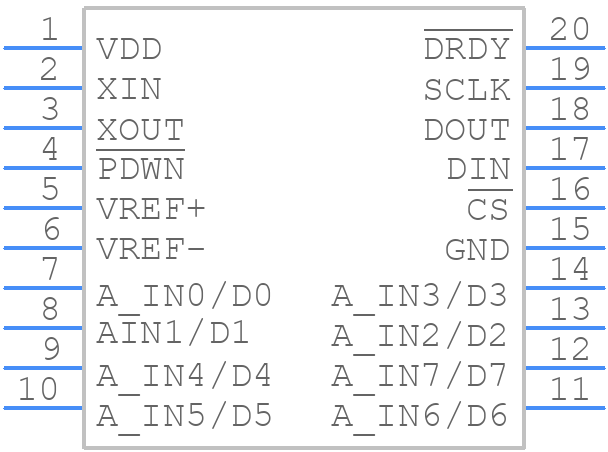

Use the download button to access the ADS1243IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
