The ADS1243SJD requires careful PCB layout and routing to minimize noise and ensure accurate conversions. TI recommends a 4-layer PCB with a dedicated analog ground plane, and to keep the analog and digital signals separate. Additionally, the input traces should be kept short and shielded, and the reference voltage should be decoupled with a 10uF capacitor.
To optimize the ADS1243SJD's performance for low-noise applications, ensure that the input signals are properly filtered and buffered, and that the analog supply voltage is well-regulated. Additionally, use a low-noise reference voltage, and consider using a noise-reducing capacitor on the REF pin. Finally, ensure that the PCB layout is optimized for low noise, with minimal signal routing and proper shielding.
The ADS1243SJD requires a two-point calibration procedure to ensure accurate conversions. First, apply a known input voltage (e.g. 0V) and adjust the offset calibration register to achieve a zero-scale output. Then, apply a known full-scale input voltage (e.g. VREF) and adjust the gain calibration register to achieve a full-scale output. Repeat this process for each channel.
The ADS1243SJD has an internal oscillator that can be used as the clock source. However, for more accurate conversions, an external clock source is recommended. Ensure that the clock frequency is within the recommended range (e.g. 2.4576MHz) and that the clock signal is clean and stable. Additionally, consider using a clock buffer or amplifier to ensure a stable clock signal.
The ADS1243SJD is sensitive to temperature changes, which can affect its accuracy and performance. Ensure that the device is operated within the recommended temperature range (-40°C to 125°C), and that the PCB is designed to minimize thermal gradients. Additionally, consider using thermal vias or heat sinks to dissipate heat and reduce thermal noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1243SJD Overview

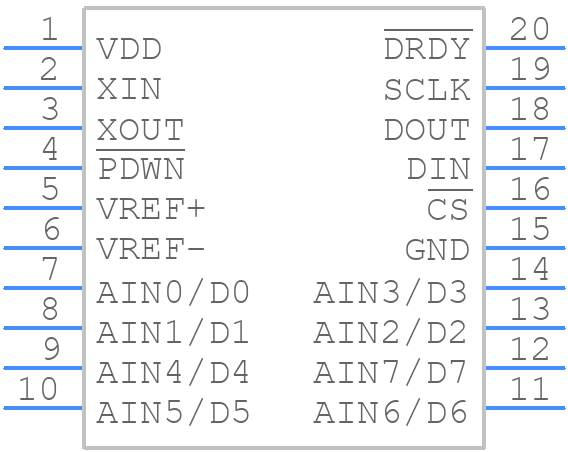

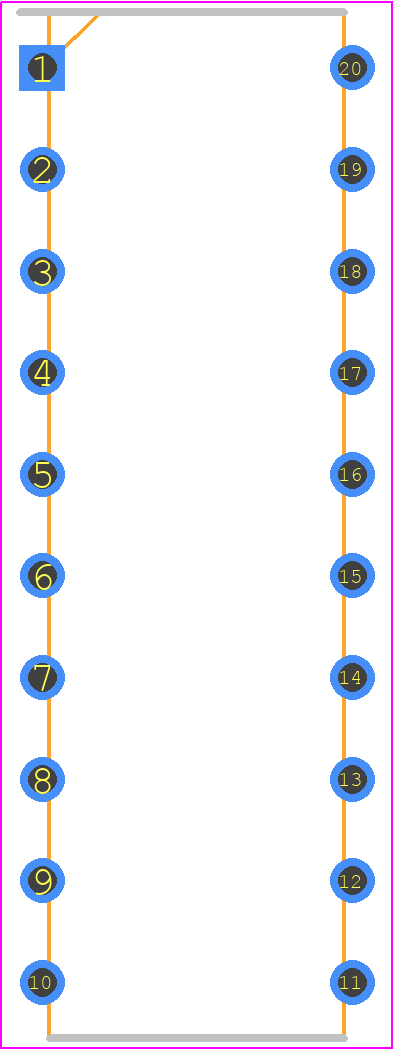

Use the download button to access the ADS1243SJD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
