The ADS1244IDGSR requires careful PCB layout and routing to minimize noise and ensure accurate conversions. TI recommends a 4-layer PCB with a dedicated analog ground plane, and to keep analog and digital traces separate. Additionally, use of a common-mode filter and a low-pass filter can help reduce noise.
The ADS1244IDGSR requires a one-time calibration process to optimize gain and offset. This can be done using the device's built-in calibration registers. TI recommends following the calibration procedure outlined in the datasheet, and using a high-precision voltage reference to ensure accurate calibration.
The ADS1244IDGSR requires a specific power-up sequence to ensure proper operation. TI recommends powering up the device in the following order: AVDD, DVDD, and then the analog input voltage. This ensures that the device's internal regulators and analog circuits are properly initialized.
The ADS1244IDGSR has an internal oscillator that can be used as the clock source. However, TI recommends using an external clock source for more accurate and stable operation. Additionally, the device's clock frequency can be adjusted using the clock divider registers to optimize power consumption and performance.
The ADS1244IDGSR is a high-resolution ADC, and as such, it is sensitive to noise. TI recommends using a combination of analog and digital filtering techniques to reduce noise and improve conversion accuracy. This includes using external filters, such as RC filters or active filters, and digital filtering using the device's built-in digital filters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1244IDGSR Overview

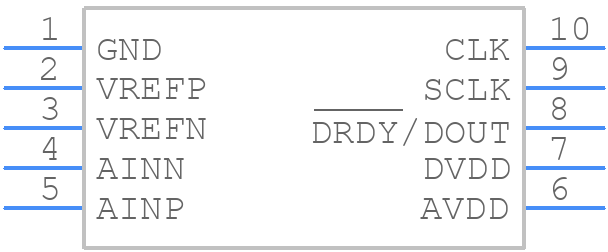

Use the download button to access the ADS1244IDGSR schematic symbol, PCB footprint, and 3D model.
