The recommended layout and routing for the ADS124S06IPBS involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To optimize the performance of the ADS124S06IPBS in noisy environments, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a common-mode filter or a differential amplifier to reject common-mode noise. Additionally, ensure that the analog and digital grounds are properly separated and decoupled.
The recommended calibration procedure for the ADS124S06IPBS involves a two-point calibration, where the device is calibrated at two known input voltages (e.g. 0V and 2.5V). The calibration coefficients are then stored in the device's internal registers. It's recommended to perform calibration at the operating temperature range of the device.
The digital output data from the ADS124S06IPBS is in 24-bit two's complement format. To handle the data, use a microcontroller or a digital signal processor to read the data from the device's SPI interface. Ensure that the data is properly aligned and formatted according to the device's datasheet.
The power consumption of the ADS124S06IPBS is typically around 15mW at 2.7V supply voltage. To minimize power consumption, use the device's power-down mode when not in use, reduce the clock frequency, and optimize the analog input range to minimize the device's internal voltage references.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS124S06IPBS Overview

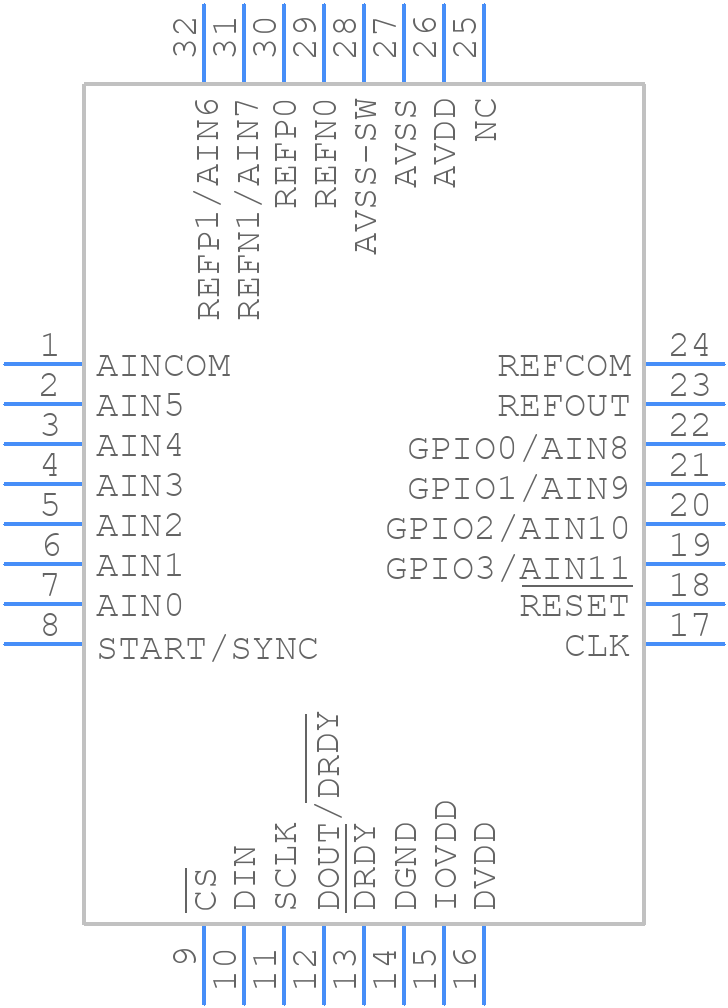

Use the download button to access the ADS124S06IPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
