Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, decouple the power supply with a 10uF capacitor and a 100nF capacitor in parallel.
Calibration involves adjusting the gain and offset of the ADC to match the specific application. Use the internal calibration feature by setting the CAL pin high, and then adjust the gain and offset registers according to the datasheet. You can also use external calibration methods, such as using a known voltage reference.
The maximum sampling rate of the ADS124S06IRHBR is 2 kSPS. However, the actual achievable sampling rate depends on the system clock frequency, conversion mode, and other factors. Higher sampling rates increase power consumption, so it's essential to balance sampling rate with power consumption requirements.
The ADS124S06IRHBR provides error flags for overflow, underflow, and other conditions. Use these flags to detect and handle errors in your application code. You can also implement software-based error correction mechanisms, such as retrying conversions or using redundant measurements.
Yes, the ADS124S06IRHBR can be used in multi-channel applications. Configure the multiplexer by setting the MUX[3:0] pins to select the desired input channel. You can also use the internal channel sequencer to automate channel selection and reduce software overhead.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS124S06IRHBR Overview

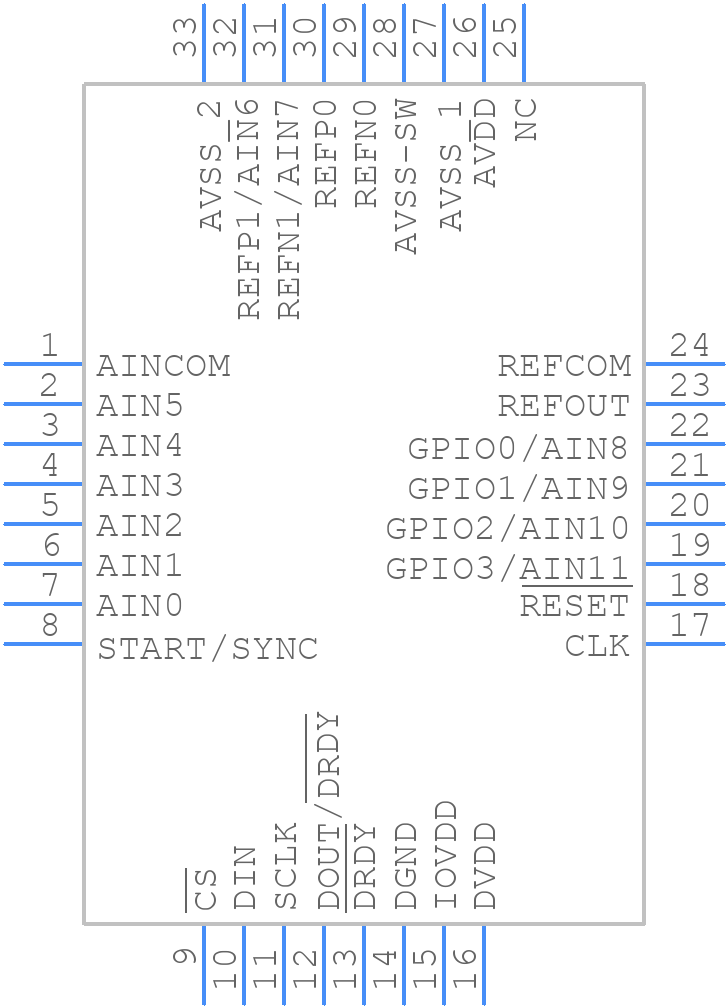

Use the download button to access the ADS124S06IRHBR schematic symbol, PCB footprint, and 3D model.
