ADS124S08IRHBT - Texas Instruments

Description: Analog to Digital Converters - ADC 24-Bit, 4kSPS, 12-Ch Delta-Sigma ADC With PGA and Voltage Reference for Precision Sensor Measurement 32-VQFN -50 to 125

Download ADS124S08IRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

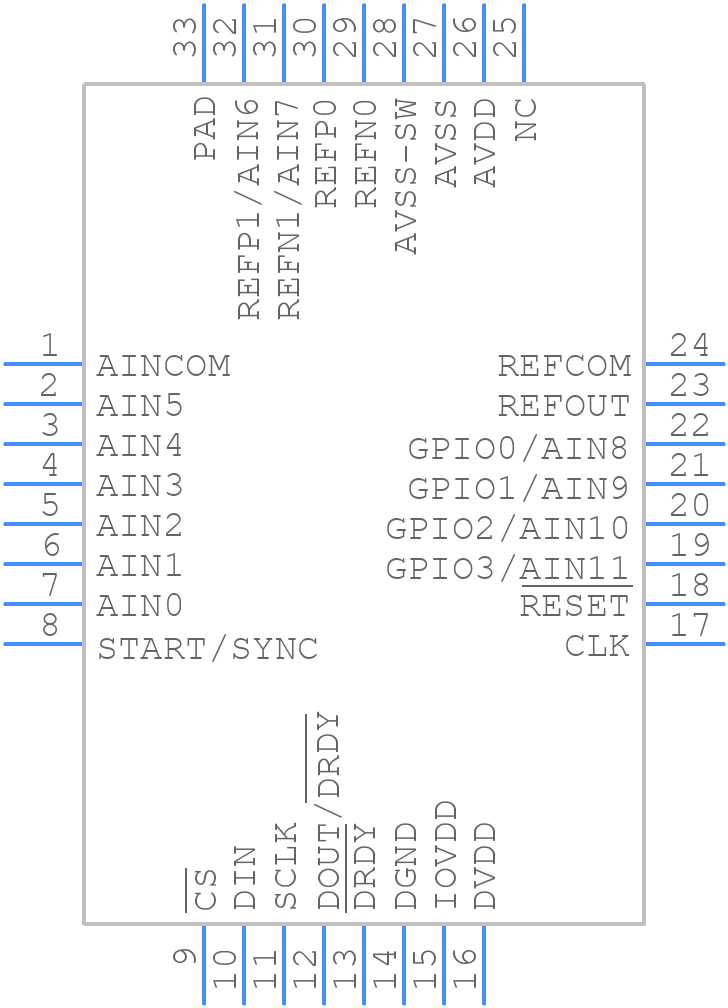

ADS124S08IRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS124S08IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN-32
click to zoom
3D Models
ADS124S08IRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - VQFN-32
click to zoom

ADS124S08IRHBT Details

  • Manufacturer Part Number:

    ADS124S08IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2016-08-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    12

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.004 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.28 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS124S08IRHBT Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog signals away from the digital signals. Additionally, use a low-pass filter on the analog input pins to reduce noise.
  • The ADS124S08IRHBT has an internal calibration mechanism. However, it's recommended to perform an external calibration using a known voltage reference to ensure accurate readings. The calibration process involves applying a known voltage to the input pins and adjusting the internal calibration registers accordingly.
  • The maximum sampling rate of the ADS124S08IRHBT is 2 kSPS. The power consumption increases with the sampling rate, so it's essential to balance the sampling rate with power consumption requirements. A higher sampling rate results in higher power consumption.
  • The ADS124S08IRHBT has a sleep mode that can be enabled to minimize power consumption. To wake up the device, a wake-up signal can be applied to the WAKE pin. The wake-up time is typically around 10 μs, and it's essential to ensure that the device is properly configured before taking readings.
  • The recommended input impedance for the ADS124S08IRHBT is less than 1 kΩ. A higher input impedance can affect the accuracy of the readings, so it's essential to ensure that the input impedance is within the recommended range.
