Texas Instruments provides a recommended layout and routing guide in the ADS1257IRGWR datasheet, application notes, and evaluation modules. It's essential to follow these guidelines to minimize noise, ensure signal integrity, and achieve optimal performance.
The ADS1257IRGWR has an internal calibration mechanism. However, users may need to perform external calibration depending on their specific application requirements. Texas Instruments provides calibration procedures and examples in the datasheet and application notes.
The ADS1257IRGWR has a maximum input voltage range of ±5V, but it's essential to consider the specific input range for each channel and the gain settings. Refer to the datasheet for detailed information on input voltage ranges and gain settings.
To minimize noise and interference, use proper shielding, grounding, and layout techniques. Additionally, consider using filters, such as RC filters or ferrite beads, to reduce noise. Texas Instruments provides guidance on noise reduction in the datasheet and application notes.
The power consumption of the ADS1257IRGWR varies depending on the operating mode, sampling rate, and voltage supply. Refer to the datasheet for detailed power consumption specifications and calculations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1257IRGWR Overview

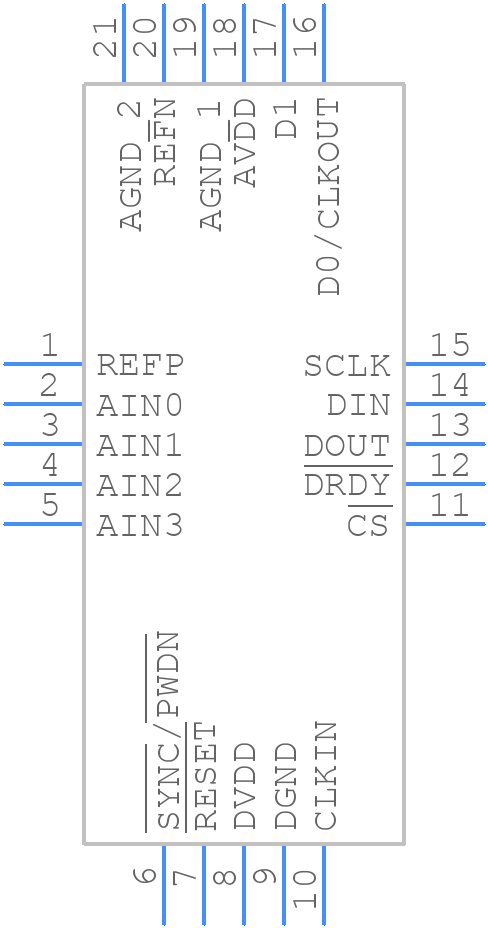

Use the download button to access the ADS1257IRGWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
