FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
0.125 MHz
Seated Height-Max:
1.2 mm
Supply Current-Max:
12 mA
Supply Voltage-Min:
2.7 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
ADS1258IPHPREP Frequently Asked Questions (FAQs)
The recommended layout and routing for the ADS1258IPHPREP involves keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and loops. TI provides a layout guide and reference design in the datasheet and application notes.
To optimize performance in noisy environments, use a low-pass filter on the analog input, ensure a clean power supply, and use shielding and grounding techniques to minimize electromagnetic interference (EMI). Additionally, consider using the device's built-in noise reduction features, such as the 50/60 Hz notch filter.
Calibration involves adjusting the device's offset and gain to ensure accurate measurements. TI provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the device's internal registers to achieve the desired accuracy.
The ADS1258IPHPREP is specified to operate from -40°C to 105°C. Ensure that the device is properly heatsinked, and that the PCB is designed to dissipate heat effectively. Monitor the device's temperature using an on-chip temperature sensor or an external temperature sensor.
The ADS1258IPHPREP requires a single 5V power supply. Ensure a clean and stable power supply, and use decoupling capacitors to minimize power supply noise. Additionally, consider using a voltage regulator to regulate the power supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1258IPHPREP Overview

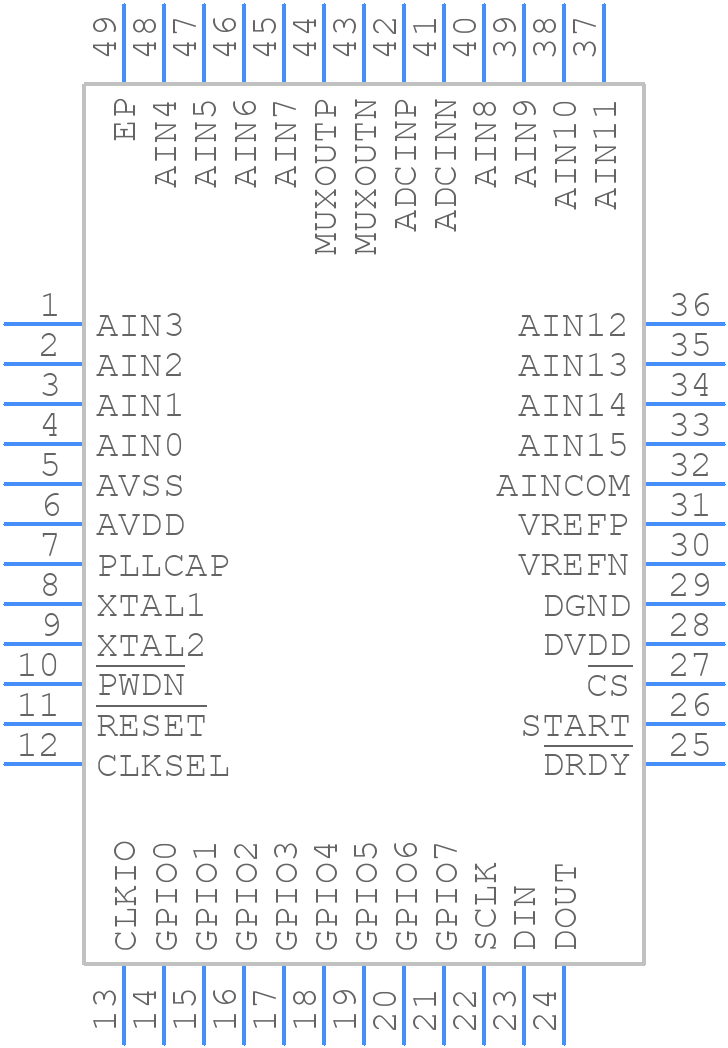

Use the download button to access the ADS1258IPHPREP schematic symbol, PCB footprint, and 3D model.
