Texas Instruments provides a recommended layout and routing guide in the ADS1258IRTCRG4 datasheet, application notes, and evaluation module documentation. It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
The ADS1258IRTCRG4 has an internal calibration mechanism. However, it's recommended to perform an external calibration to achieve optimal performance. Texas Instruments provides calibration procedures and examples in the datasheet and application notes. Additionally, the device has a calibration register that can be accessed through the SPI interface.
The maximum sampling rate of the ADS1258IRTCRG4 is 30 kSPS. However, this rate can be affected by the clock frequency, gain settings, and other system-level factors. It's essential to consult the datasheet and application notes to determine the optimal sampling rate for your specific application.
The ADS1258IRTCRG4's analog inputs have a high impedance, which can be challenging to drive. To handle this, use a low-impedance signal source, such as an op-amp buffer, and ensure that the signal source can drive the required current. Additionally, consider using a signal conditioning circuit to match the impedance and provide a stable signal.
The power consumption of the ADS1258IRTCRG4 varies depending on the operating mode, sampling rate, and supply voltage. According to the datasheet, the typical power consumption is around 12 mW at 3 V and 30 kSPS. However, it's essential to consult the datasheet and perform power consumption calculations based on your specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1258IRTCRG4 Overview

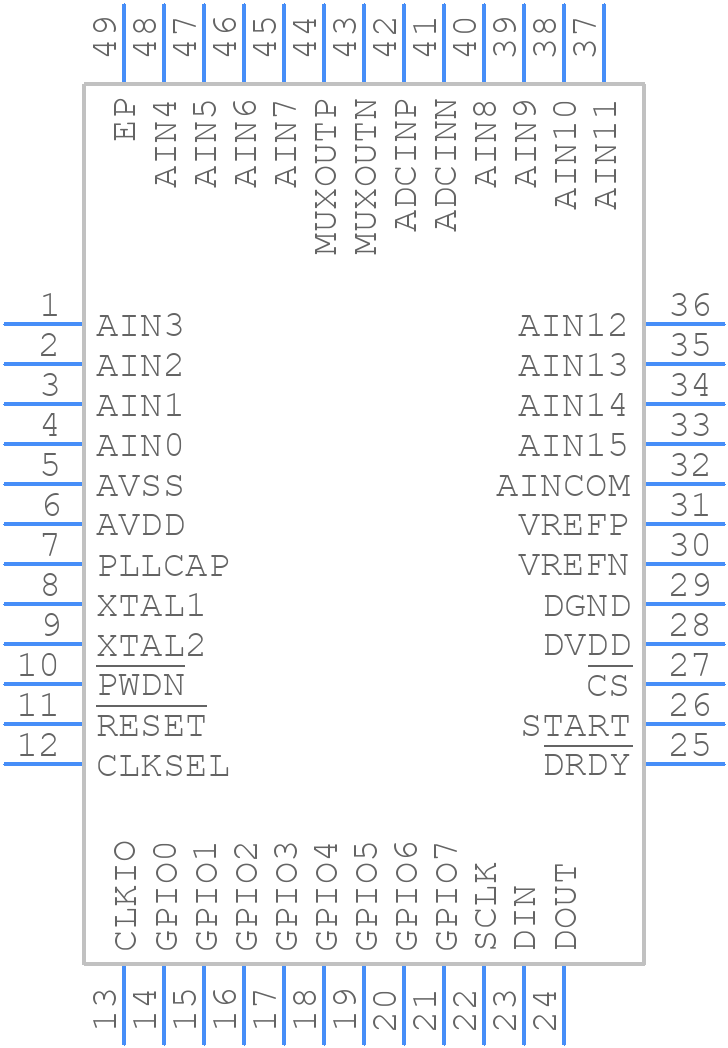

Use the download button to access the ADS1258IRTCRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
