Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter capacitor (e.g., 10nF) between the analog input pins and the analog ground pin.
Calibration involves adjusting the internal gain and offset registers to compensate for device variations. Use the built-in self-calibration feature or perform a system-level calibration using a known input signal. Refer to the datasheet and application notes for detailed calibration procedures.
The maximum sampling rate of the ADS125H02IRHBR is 30 kSPS. However, the actual achievable sampling rate depends on the system clock frequency, conversion mode, and power mode. Higher sampling rates increase power consumption, so it's essential to balance sampling rate and power consumption based on system requirements.
The high impedance of the analog input pins requires careful signal conditioning to prevent signal attenuation and distortion. Use a buffer amplifier or an op-amp with a high input impedance to drive the analog input pins. Ensure the input signal is properly filtered and amplified to match the ADS125H02IRHBR's input range.
The internal voltage reference of the ADS125H02IRHBR can be affected by temperature, power supply voltage, and noise. Ensure a stable power supply, use a decoupling capacitor, and keep the device away from noise sources. Also, consider using an external voltage reference for higher accuracy and stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS125H02IRHBR Overview

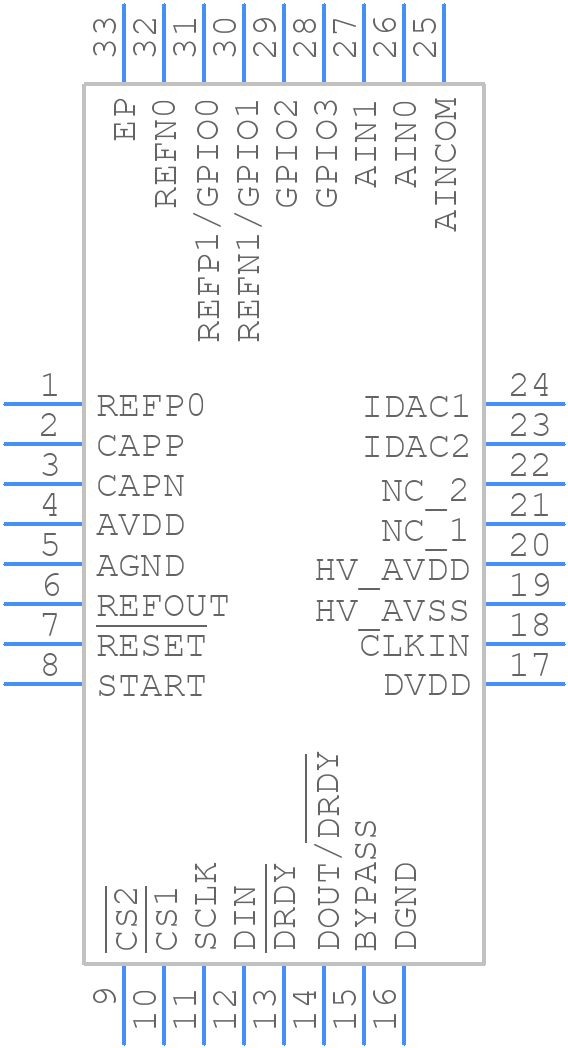

Use the download button to access the ADS125H02IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
