The ADS1260BIRHBR requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1260BIRHBR's performance, consider the following: choose the correct gain setting, select the appropriate clock frequency, and adjust the PGA gain and offset to match your signal range. Additionally, consider using the device's built-in calibration features and noise-reduction modes.
The ADS1260BIRHBR outputs 24-bit or 32-bit data, depending on the mode. To handle the digital output data, use a microcontroller or FPGA with a compatible interface (e.g., SPI or I2C). Ensure proper synchronization and data formatting to avoid errors. Consider using a FIFO or buffer to handle data bursts.
To ensure EMC with the ADS1260BIRHBR, follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering for sensitive analog signals. Additionally, consider using a metal shield or enclosure to reduce electromagnetic radiation.
The ADS1260BIRHBR has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and avoid overheating by keeping the device within the recommended operating temperature range (–40°C to 125°C).
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS1260BIRHBR Overview

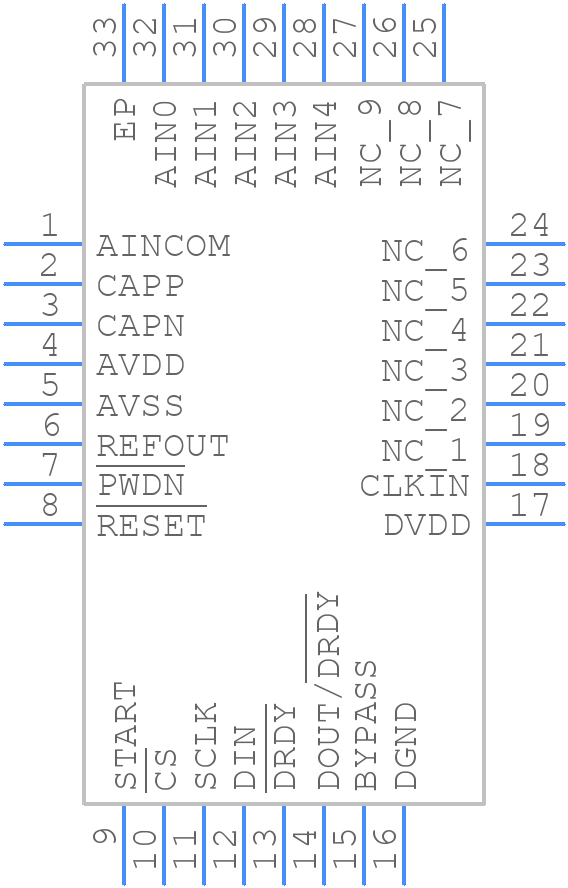

Use the download button to access the ADS1260BIRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
