ADS1260BQWRHMRQ1 - Texas Instruments

Description: Automotive 24-bit, 40-kSPS, 5-ch delta-sigma ADC with PGA, VREF and IDACs

Download ADS1260BQWRHMRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

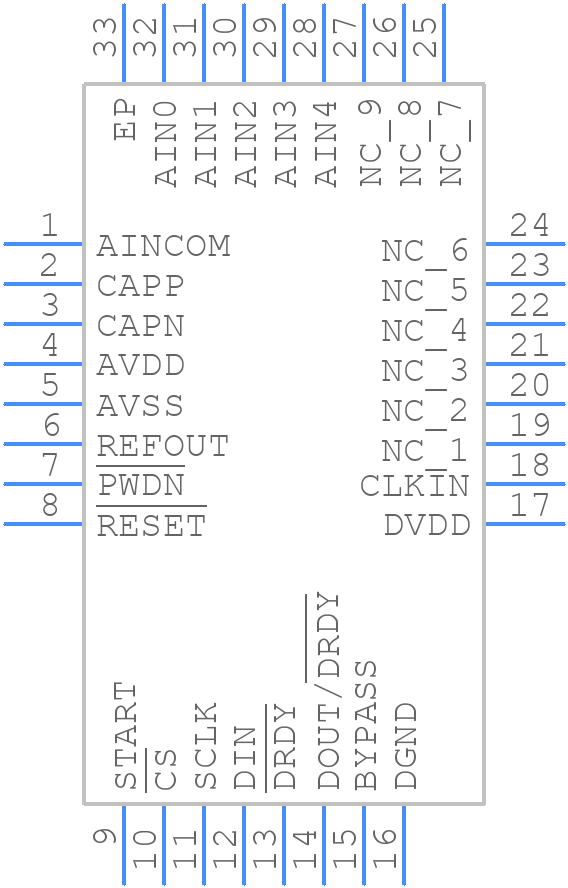

ADS1260BQWRHMRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1260BQWRHMRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHM0032A-021-1
click to zoom
3D Models
ADS1260BQWRHMRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RHM0032A-021-1
click to zoom

ADS1260BQWRHMRQ1 Details

  • Manufacturer Part Number:

    ADS1260BQWRHMRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2019-05-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    5

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.04 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS1260BQWRHMRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADS1260BQWRHMRQ1 evaluation module user's guide (SLAU445). It recommends a 4-layer PCB with a solid ground plane, and specific routing guidelines for analog and digital signals.
  • The ADS1260BQWRHMRQ1 has an internal calibration mechanism. However, external calibration may be required for high-accuracy applications. Texas Instruments provides a calibration guide in the ADS1260BQWRHMRQ1 datasheet (SBAS642) and application notes (e.g., SBAU242).
  • The ADS1260BQWRHMRQ1 has a maximum input voltage range of ±5V, but it can be limited by the voltage reference (VREF) used. Ensure that the input voltage does not exceed the VREF voltage to avoid saturation or damage to the device.
  • Use proper shielding, grounding, and layout techniques to minimize noise and interference. Add filters or shielding to sensitive analog signals, and consider using a dedicated analog power supply. Texas Instruments provides noise reduction techniques in the ADS1260BQWRHMRQ1 datasheet and application notes.
  • Yes, the ADS1260BQWRHMRQ1 can be used with a different VREF, but ensure that the VREF voltage is within the recommended range (2.5V to 5.5V) and that the input voltage does not exceed the VREF voltage. Consult the datasheet and application notes for specific guidance on VREF selection and configuration.
