Description:Analog to Digital Converters - ADC 24-bit 40kSPS 10-ch delta-sigma ADC w/ PGA, Vref, 2x IDACs, and AC excitation for factory automation 32-VQFN -40 to 125
The ADS1261BIRHBT is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources.
To optimize the ADS1261BIRHBT's performance, consider the following: choose the correct gain setting, adjust the sampling rate and filter settings, and optimize the analog front-end circuitry. Additionally, consider using the ADC's built-in calibration features and adjusting the internal voltage reference to suit your application.
The ADS1261BIRHBT outputs 32-bit data, which can be processed using a microcontroller or FPGA. It is recommended to use a FIFO or buffer to handle the data stream, and to consider using a CRC or checksum to ensure data integrity. Additionally, consider using a dedicated SPI or I2C interface to communicate with the ADC.
To ensure the ADS1261BIRHBT's accuracy and linearity, consider the following: use a high-quality voltage reference, implement a temperature compensation scheme, and perform periodic calibration and self-test. Additionally, consider using a thermistor or temperature sensor to monitor the ADC's temperature and adjust the calibration accordingly.
To mitigate EMI and RFI when using the ADS1261BIRHBT, consider the following: use a shielded enclosure, keep the ADC and analog circuitry away from digital components, use a common-mode choke or ferrite bead on the analog inputs, and consider using a EMI filter or shielded cable for the analog signals.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1261BIRHBT Overview

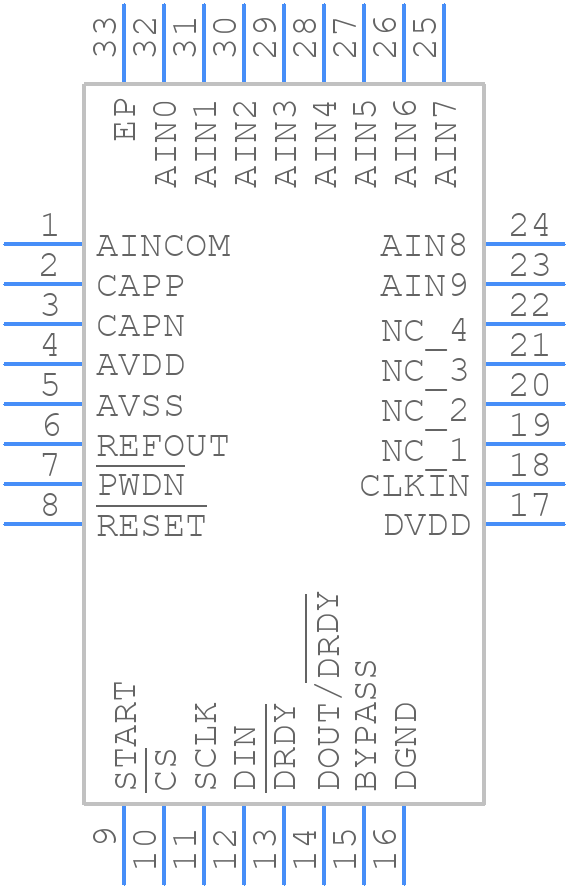

Use the download button to access the ADS1261BIRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
