The ADS1261IRHBR requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1261IRHBR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate filter settings. Additionally, ensure proper signal conditioning, use a stable reference voltage, and minimize noise and interference in the system.
The ADS1261IRHBR's digital output data should be handled carefully to avoid data corruption. Use a first-in-first-out (FIFO) buffer to handle data, and consider using a dedicated DMA channel to transfer data to the processor. Ensure proper synchronization and data validation to prevent errors.
The ADS1261IRHBR requires calibration and trim to ensure accurate conversions. Follow the datasheet's calibration procedure, and use the device's built-in calibration modes. Additionally, consider using an external calibration signal and verify the device's performance using the built-in diagnostic features.
The ADS1261IRHBR requires a stable power supply to ensure accurate conversions. Use a low-noise, high-PSRR voltage regulator, and consider using a separate analog and digital power supply. Ensure the power supply is decoupled and filtered to minimize noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1261IRHBR Overview

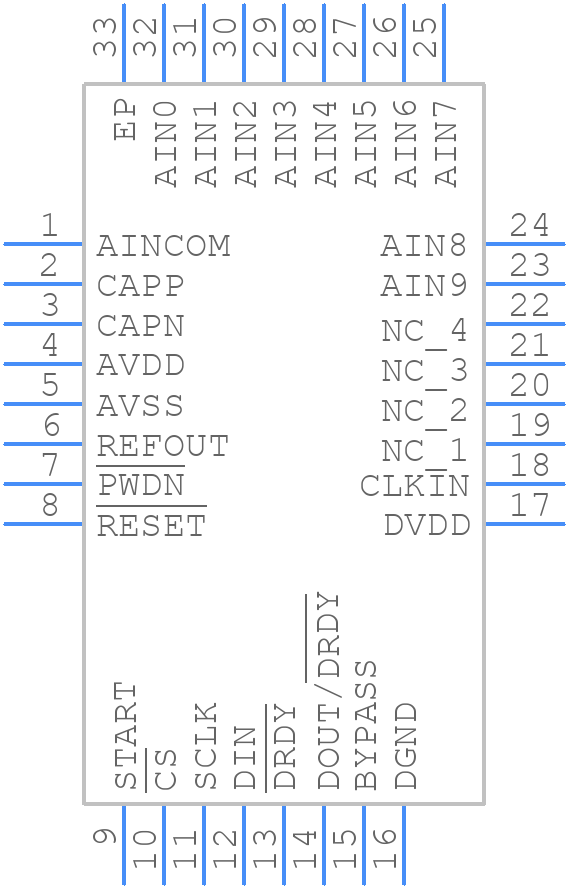

Use the download button to access the ADS1261IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
