The ADS1262IPW requires careful PCB layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1262IPW's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate filter settings. Additionally, ensure proper signal conditioning, such as filtering and amplification, to improve the signal-to-noise ratio.
The ADS1262IPW's digital interface requires careful handling to ensure reliable data transfer. Use a dedicated SPI bus, ensure proper clock synchronization, and implement error checking mechanisms to detect and correct data transmission errors.
Calibration is crucial for achieving optimal accuracy with the ADS1262IPW. Perform a system calibration by applying a known input signal and adjusting the device's offset and gain settings accordingly. Additionally, consider implementing a calibration routine in your application code to ensure optimal performance.
The ADS1262IPW's performance can be affected by temperature. Ensure proper thermal management by providing adequate heat dissipation, avoiding thermal gradients, and operating the device within the recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1262IPW Overview

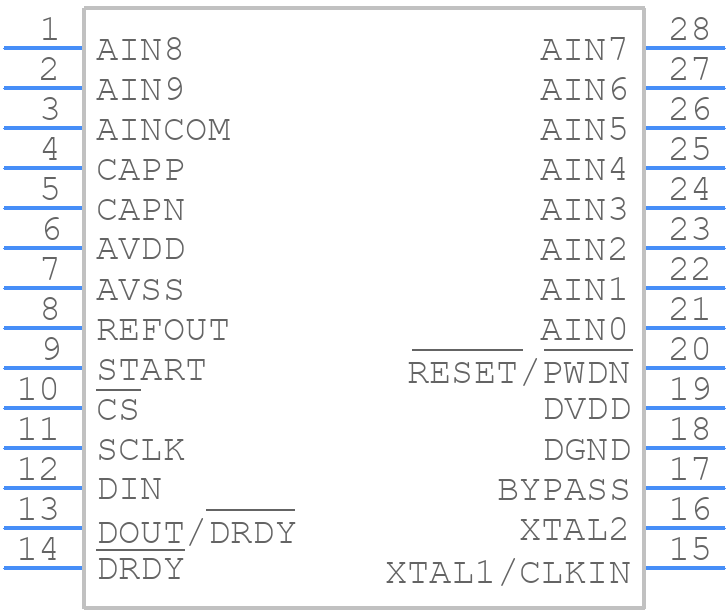

Use the download button to access the ADS1262IPW schematic symbol, PCB footprint, and 3D model.
