The ADS1263IPWR requires careful PCB layout and placement to ensure optimal performance. TI recommends placing the device near the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. A 4-layer PCB with a dedicated analog ground plane is recommended.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate filter settings. Additionally, ensure proper signal conditioning, use a low-noise power supply, and minimize electromagnetic interference (EMI).
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures proper device initialization and prevents potential latch-up conditions.
The ADS1263IPWR has an internal oscillator that can be used as a clock source. However, for better accuracy and jitter performance, an external clock source is recommended. Ensure the clock signal meets the device's specified frequency and amplitude requirements.
To minimize EMI and RFI, use a shielded enclosure, keep analog and digital traces separate, and use a common-mode filter on the analog input signals. Additionally, ensure proper grounding, use a low-pass filter on the power supply, and consider using a ferrite bead or common-mode choke on the clock signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1263IPWR Overview

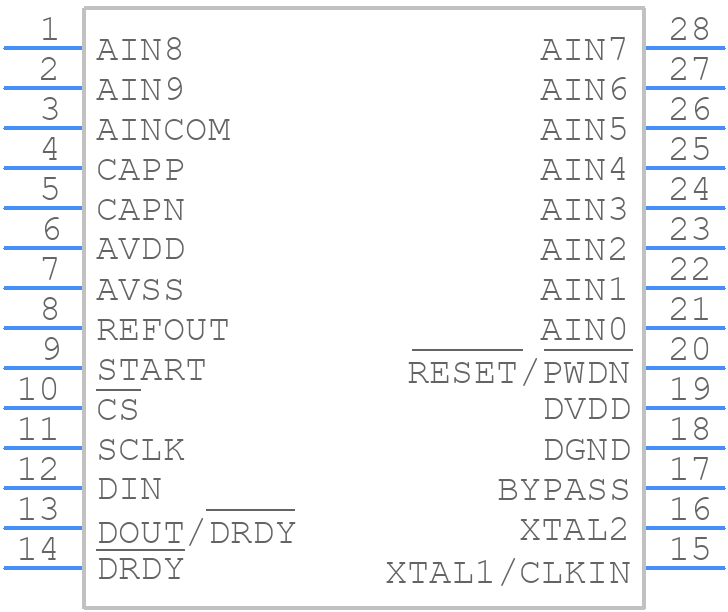

Use the download button to access the ADS1263IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
