The ADS1271IBPW requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1271IBPW's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate digital filter. Additionally, ensure proper signal conditioning, filtering, and amplification of the input signal. TI provides application notes and design guides to help with optimization.
The ADS1271IBPW outputs 24-bit data in a specific format. To handle the digital output data, use a microcontroller or FPGA to receive and process the data. Ensure proper synchronization and data alignment, and consider using a FIFO or buffer to handle data bursts.
To ensure EMC and reduce EMI, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and consider using EMI filters or common-mode chokes. Additionally, ensure that the device is properly decoupled and that the power supply is clean and stable.
The ADS1271IBPW has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink or thermal pad, and avoid exposing the device to extreme temperatures. Consider the device's power consumption and thermal resistance when designing the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1271IBPW Overview

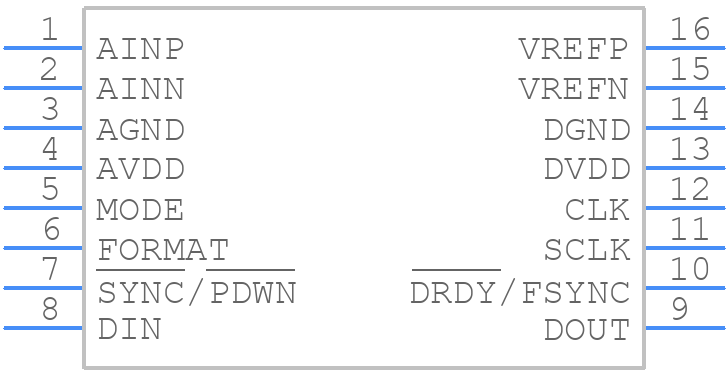

Use the download button to access the ADS1271IBPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
