Texas Instruments provides a recommended layout and routing guide in the ADS127L11IRUKT datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and avoiding vias and right-angle turns near the device.
Optimizing the performance of the ADS127L11IRUKT requires careful consideration of the analog front-end design, including the selection of input resistors, capacitors, and amplifiers. TI provides application notes and design tools, such as the ADS127L11IRUKT Evaluation Module, to help engineers optimize their design.
The maximum sampling rate of the ADS127L11IRUKT is 400 kSPS, but this can be affected by the clock frequency, analog input bandwidth, and digital output data rate. Engineers should consult the datasheet and application notes for specific guidance on achieving the highest possible sampling rate in their application.
The ADS127L11IRUKT outputs data at high speeds, requiring careful consideration of digital signal integrity, including signal termination, routing, and receiver design. Engineers should use high-speed digital design guidelines and tools, such as IBIS models, to ensure reliable data transfer.
The power consumption of the ADS127L11IRUKT varies depending on the operating mode, sampling rate, and supply voltage. Engineers can minimize power consumption by using the device's low-power modes, optimizing the analog front-end design, and using power-saving techniques such as dynamic voltage scaling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS127L11IRUKT Overview

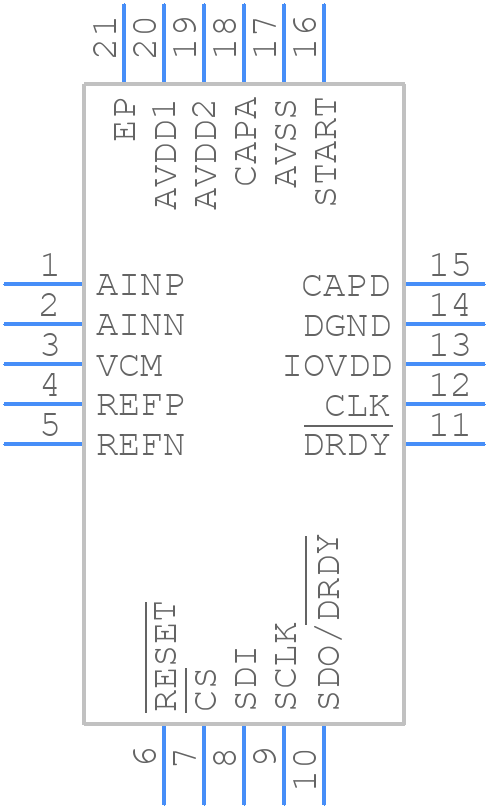

Use the download button to access the ADS127L11IRUKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
