The ADS1281IPW requires careful PCB layout and routing to minimize noise and ensure optimal performance. TI recommends following the layout guidelines in the datasheet, including keeping analog and digital traces separate, using a solid ground plane, and minimizing trace lengths.
To optimize the ADS1281IPW's performance, consider factors such as input signal amplitude, frequency, and impedance. Adjust the ADC's gain, offset, and filter settings accordingly. Additionally, ensure proper power supply decoupling, and consider using a dedicated analog power supply if necessary.
To minimize EMI and RFI, use shielding, filtering, and grounding techniques. Ensure the ADC is placed in a shielded enclosure, and use EMI filters on the input signals. Ground the ADC's analog and digital grounds separately, and use a common mode choke to reduce noise.
To troubleshoot issues, start by verifying the power supply, clock, and input signal integrity. Check for proper PCB layout and routing, and ensure the ADC is properly configured. Use TI's debugging tools, such as the TINA-TI SPICE simulator, to analyze the circuit and identify potential issues.
The ADS1281IPW has a maximum junction temperature of 150°C. Ensure proper heat dissipation by using a heat sink, thermal interface material, and a PCB design that allows for airflow. Monitor the ADC's temperature using the internal temperature sensor or an external thermometer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1281IPW Overview

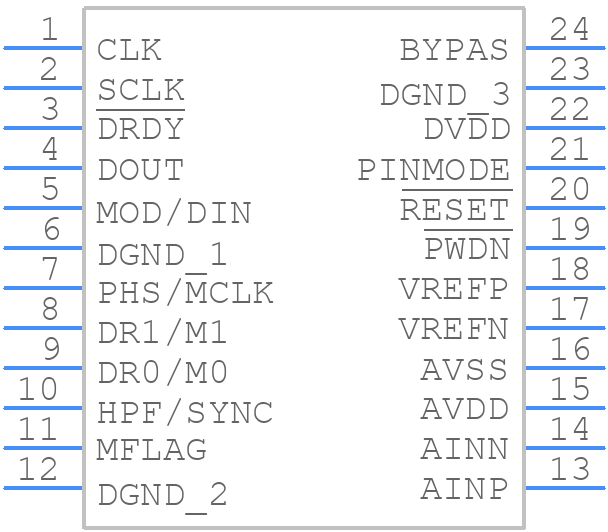

Use the download button to access the ADS1281IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
