The ADS1282HPW requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping the analog and digital traces separate. Additionally, the device should be placed in a quiet area of the board, away from high-frequency sources.
To optimize the ADS1282HPW's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and optimize the analog front-end (AFE) configuration. Additionally, ensure proper filtering, shielding, and grounding to minimize noise and interference.
The recommended power-up sequence for the ADS1282HPW is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps prevent latch-up and ensures proper device operation.
The ADS1282HPW outputs 24-bit data in a serial format. To handle the digital output data, use a microcontroller or FPGA to receive and process the data. Ensure proper synchronization and data formatting to avoid errors and ensure accurate data acquisition.
The ADS1282HPW has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat dissipation, using thermal pads or heat sinks if necessary, and avoiding high ambient temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1282HPW Overview

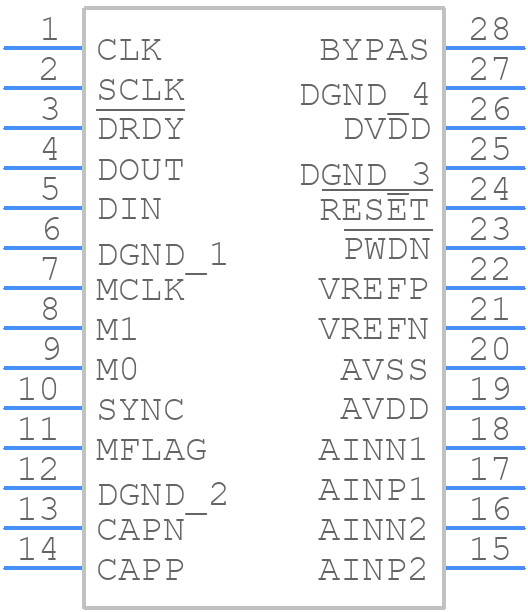

Use the download button to access the ADS1282HPW schematic symbol, PCB footprint, and 3D model.
