It's essential to follow a good layout and placement strategy to minimize noise and ensure optimal performance. TI recommends placing the ADS1282SJDJ close to the analog signal sources, using a star-ground configuration, and keeping the analog and digital grounds separate.
To optimize the ADS1282SJDJ's performance, consider the input signal's frequency, amplitude, and impedance. Adjust the gain, filter settings, and sampling rate according to your application's requirements. Additionally, ensure proper power supply decoupling and a low-noise PCB design.
The ADS1282SJDJ outputs 24-bit data. To handle this data efficiently, use a microcontroller or FPGA with a 24-bit or 32-bit data bus. Consider using a SPI or I2C interface to communicate with the ADC. You may also need to implement data formatting and error checking depending on your application.
To ensure accuracy and linearity, calibrate the ADS1282SJDJ regularly, especially in high-precision applications. Use a high-quality voltage reference, and consider implementing a calibration routine in your firmware. Additionally, ensure the ADC is operated within its specified temperature range.
The ADS1282SJDJ requires a clean and stable power supply. Use a low-noise, low-dropout regulator (LDO) and decouple the power supply lines with a combination of ceramic and electrolytic capacitors. Place the decoupling capacitors close to the ADC's power pins to minimize inductance and noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1282SJDJ Overview

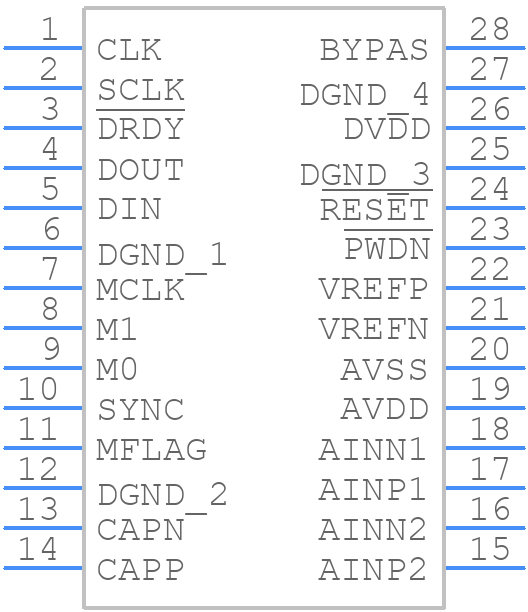

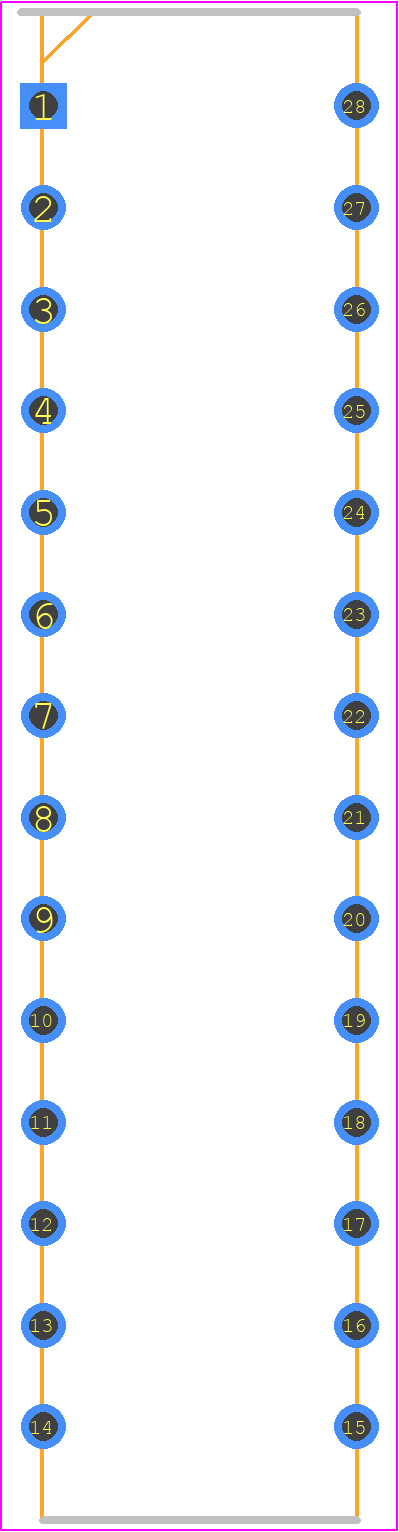

Use the download button to access the ADS1282SJDJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
