Description:Analog to Digital Converters - ADC Ultra-high-resolution 4-kSPS 2-ch delta-sigma ADC with PGA for seismic and energy exploration 24-VQFN -40 to 85
The recommended layout and routing for the ADS1283IRHFT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also important to keep the analog and digital power supplies separate and to use decoupling capacitors to reduce noise.
To optimize the performance of the ADS1283IRHFT in noisy environments, use shielding, filtering, and grounding techniques to reduce electromagnetic interference (EMI). Additionally, use a low-pass filter at the input to remove high-frequency noise, and consider using a differential input configuration to reduce common-mode noise.
The maximum sampling rate of the ADS1283IRHFT is 250 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, the input signal's bandwidth, and the desired signal-to-noise ratio (SNR).
The ADS1283IRHFT has an internal calibration mechanism that can be initiated through the CAL pin. The calibration process involves shorting the input pins to the internal reference voltage, and then adjusting the offset and gain registers to achieve the desired accuracy. Refer to the datasheet for the specific calibration procedure.
The power consumption of the ADS1283IRHFT depends on the operating mode, sampling rate, and supply voltage. In normal operation, the typical power consumption is around 15 mW at 3.3 V and 250 kSPS. However, the power consumption can be reduced to around 1.5 mW in low-power mode.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1283IRHFT Overview

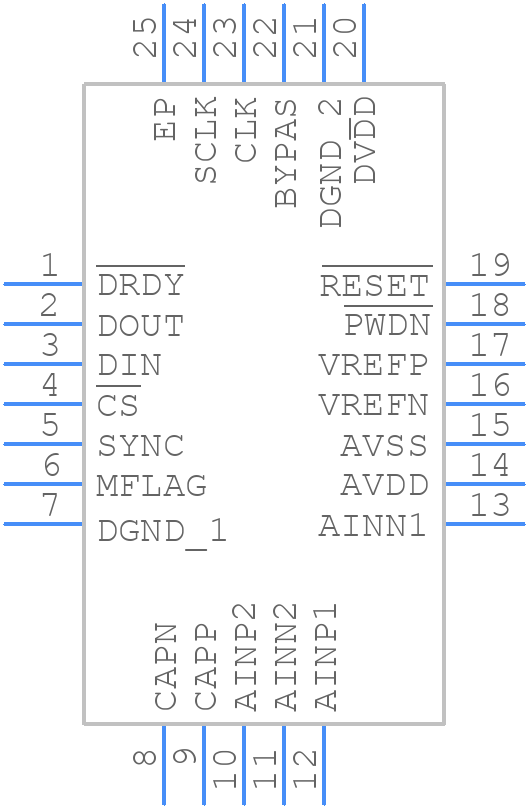

Use the download button to access the ADS1283IRHFT schematic symbol, PCB footprint, and 3D model.
