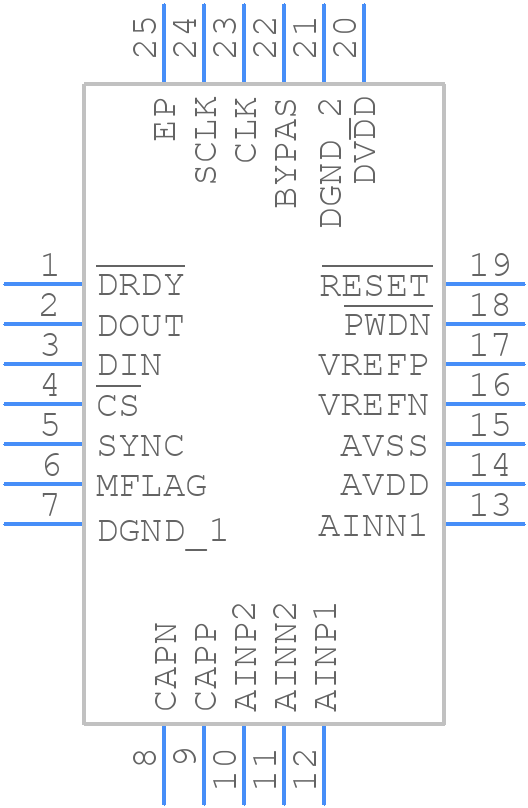

ADS1284IRHFT - Texas Instruments

ADS1284IRHFT Details

• Manufacturer Part Number:

  ADS1284IRHFT

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  HQCCN-24

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog Input Voltage-Max:

  5 V

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  R-PQCC-N24

• JESD-609 Code:

  e4

• Length:

  5 mm

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Nom:

  -2.5 V

• Number of Analog In Channels:

  2

• Number of Bits:

  31

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HQCCN

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  260

• Sample Rate:

  0.004 MHz

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  2.5 mA

• Supply Voltage-Min:

  1.65 V

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm
