ADS1285IRHBT - Texas Instruments

Description: Analog to Digital Converters - ADC 32-bit high-resolution two-channel delta-sigma ADC for seismic and geospace exploration

Download ADS1285IRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

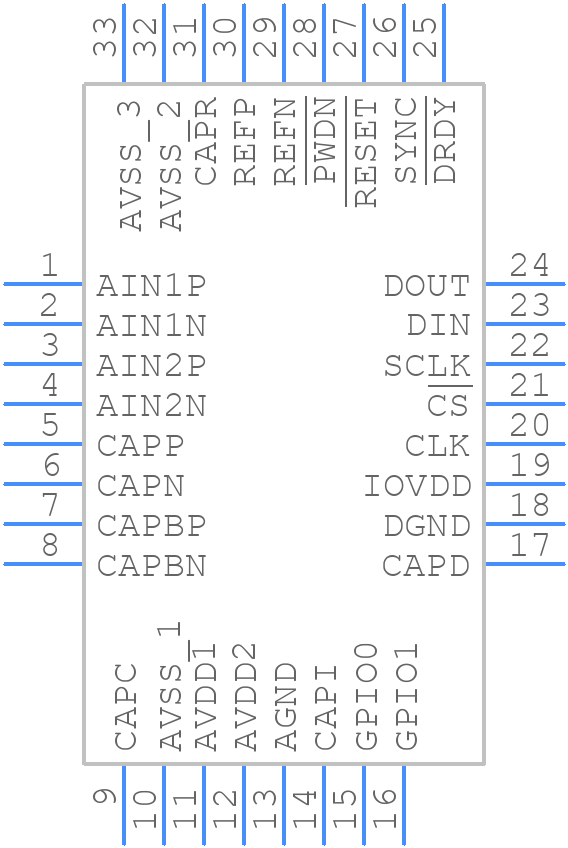

ADS1285IRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1285IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
ADS1285IRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

ADS1285IRHBT Details

  • Manufacturer Part Number:

    ADS1285IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.004 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.85 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADS1285IRHBT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADS1285IRHBT close to the analog signal sources to minimize noise. Additionally, decoupling capacitors should be placed as close as possible to the device's power pins.
  • Optimizing the ADC's performance requires careful consideration of the input signal, clock frequency, and gain settings. TI provides an ADC Performance Calculator tool to help engineers optimize the ADS1285IRHBT's performance for their specific application.
  • The ADS1285IRHBT can handle input voltages up to ±VREF (±5V for the ADS1285IRHBT), but it's recommended to keep the input voltage within ±VREF/2 to ensure accurate conversions.
  • To minimize EMI and RFI, use a shielded enclosure, keep the analog signal paths short, and use a common-mode filter or a ferrite bead on the analog input lines. Additionally, ensure that the PCB layout is designed to minimize radiation and coupling.
  • The recommended clock frequency for the ADS1285IRHBT is between 1 MHz and 4 MHz, depending on the desired conversion rate and noise performance. A higher clock frequency can improve conversion speed but may also increase noise and power consumption.
